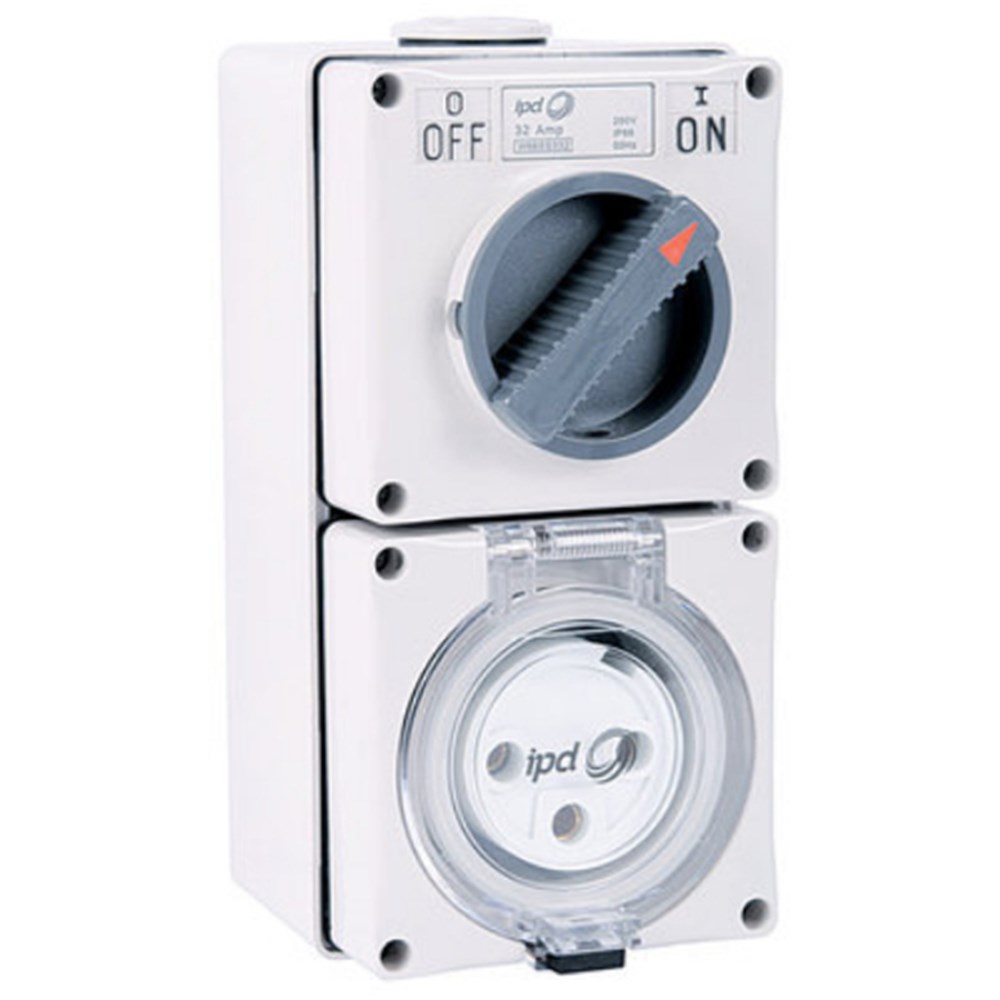

IPD W66SS332 Switched Outlet 3-P 3 Round-Pin 1-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66SS332

  • 32A, 500V AC/DC rated outlet
  • Durable polycarbonate material
  • IP66 protection for harsh environments
  • Includes back box and multiple gland entries
  • Complies with IEC947-3/AS3133/AS3123 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Switched Outlet
Brand IPD
Back Box Included Yes
Cable Cross Section 16 sq-mm
Cover Style Light Grey
Degree of Protection IP66
Depth 110 mm
Gland Entries (1) M32, (2) M25
Height 197 mm
Material Polycarbonate
Number of Pins 3
Number of Poles 3
Phase 1
Pin Type Round
Rated Current 32 A
Rated Voltage 500 VAC/VDC
Standards and Approvals IEC947-3/AS3133/AS3123
Width 101 mm

Description

<p>When it comes to selecting a reliable and robust outlet for industrial or commercial applications, this 32 A outlet stands out as a dependable choice. Designed with practicality and durability in mind, it caters to the demanding requirements of various environments.</p><p>Constructed from high-quality polycarbonate, this outlet is engineered to withstand challenging conditions while maintaining its structural integrity. Its dimensions—197 mm in height, 101 mm in width, and 110 mm in depth—make it compact yet spacious enough to accommodate necessary wiring components efficiently.</p><p>The outlet&amp;#39;s rated voltage of up to 500 VAC/VDC ensures compatibility with a broad range of electrical systems. With three poles available, it provides flexibility for diverse wiring configurations. The round pin type further enhances connectivity options, making it suitable for different plug types used across industries.</p><p>One of the standout features of this product is its IP66 degree of protection. This rating guarantees excellent resistance against dust ingress and powerful water jets from any direction. Such resilience makes it ideal for outdoor installations or areas prone to exposure to harsh elements.</p><p>For ease of installation, the outlet includes a back box and offers multiple gland entries: one M32 entry and two M25 entries. These entries facilitate secure cable management while accommodating cables with cross sections up to 16 sq-mm. This thoughtful design feature simplifies setup without compromising on safety or functionality.</p><p>Compliant with IEC947-3/AS3133/AS3123 standards and approvals, this outlet meets stringent international quality benchmarks ensuring reliability and peace of mind during operation.</p><p>In summary, this industrial-grade outlet combines durability with practical design elements tailored for challenging environments. Whether you&amp;#39;re upgrading existing systems or setting up new installations requiring consistent performance under duress, this product delivers on all fronts without unnecessary frills or complexity.</p>
