W66 Industrial IP66 Switchgear

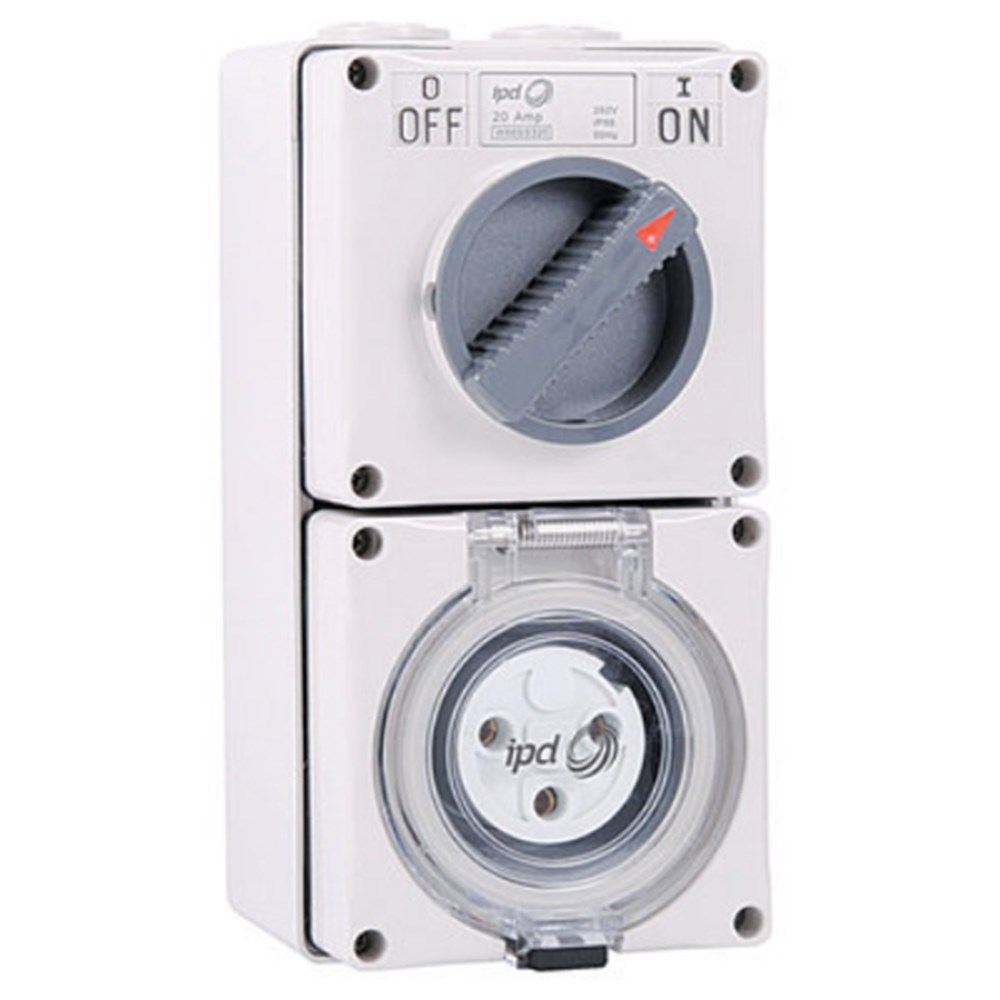

IPD SWITCHED OUTLET SINGLE PHASE 3 ROUND PINS 20A 250V, IP66 W66SS320

Product Code: W66SS320

This single phase switched outlet features 3 round pins and a full size back box. It has an IP66 rating, making it highly resistant to dust and water. The current rating is 20A, with a voltage rating of 250V. The maximum cable area supported is 6mm². It has 1 x M32 and 2 x M25 entries for easy installation. Made from polycarbonate UV stabilised material, it also includes stainless steel 316 fixings for durability.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 197H x 101D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 1
No. of Pins 3
No. of Poles 2
Pin Type Round
Rated Current (A) 20
Rated Voltage AC/DC (V) 250
Standards and Approvals IEC947-3/AS3133/AS3123
