Outdoor Isolators & Socket Outlets

IPD IPG102 IPG SWITCHED SOCKET OUTLET 10A DOUBLE, IP53

Product Code: IPG102

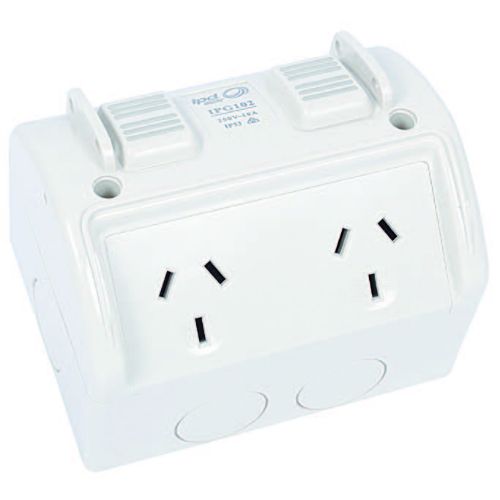

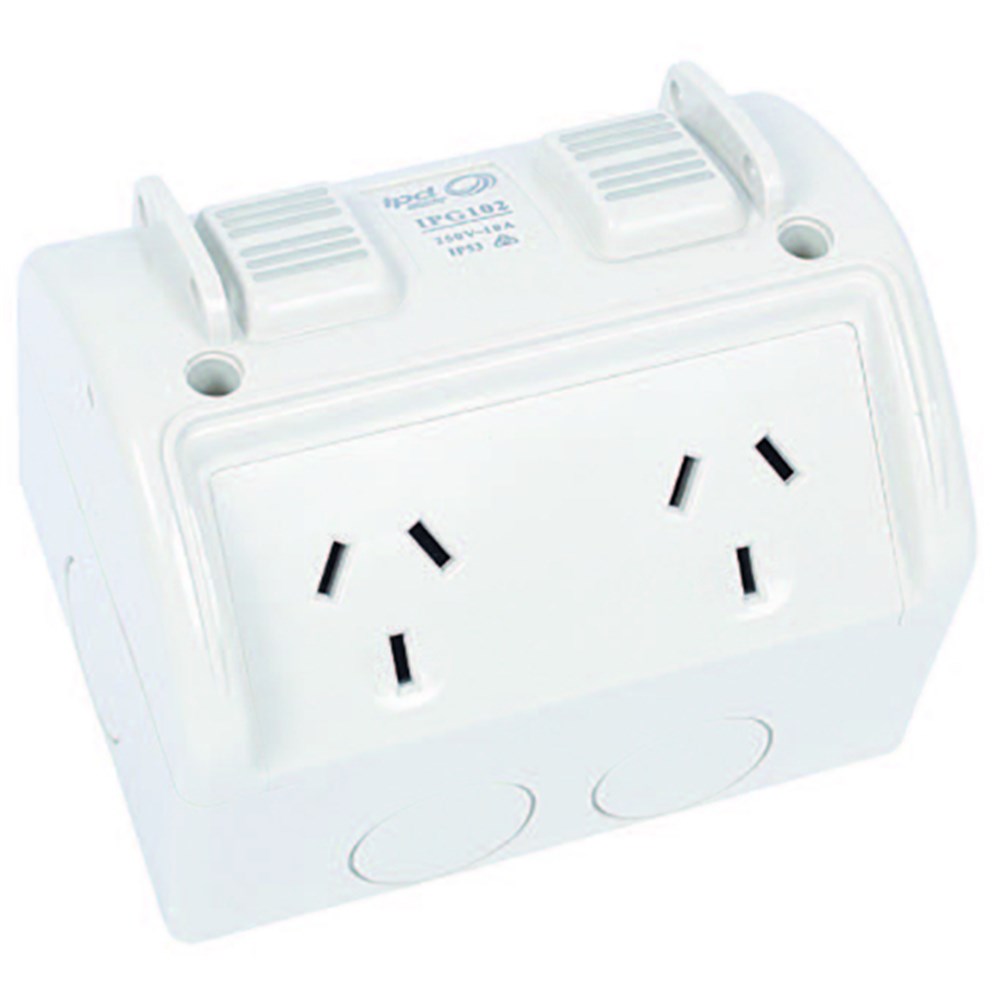

The IPG switched socket outlet is a double 10A outlet with an IP53 rating. It can accommodate a maximum cable area of 6mm² and has 6 x 25mm plain entries. The ON/OFF buttons are padlockable and have a high grip design. This product has been tested to meet the AS/NZS 3112 standards. Each pack contains 30 units, and the dimensions of the outlet are 115Wx85Hx86Dmm.

Technical Specifications

Brand IPD
Degree of Protection IP53
Dimensions (mm) 115Wx85Hx86D
Gland Entries 6 x 25mm Plain
Maximum Cable Cross Section (mm²) 6
No. of Outlets 2
Pack Quantity 30
Rated Current (A) 10
