Clamp Type	Screw Terminals
Mechanical Durability	20000
Operating Mechanism	Front and side operated
Position of Line Terminals	Top In - Bottom Out Bottom In - Top Out
Rated Insulation Voltage	acc. to IEC/EN 60664-1 1000 V
Rated Making Capacity AC-3	(690 V) 12 kA
Rated Operational Current AC-21A (A)	(380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
Rated Operational Current AC-22A (A)	(380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
Rated Operational Current AC-23A (A)	(380 ... 415 V) 160 A (500 V) 160 A (690 V) 160 A
Rated Operational Power AC-23A (kW)	(220 ... 240 V) 45 kW (400 ... 415 V) 75 kW (500 V) 90 kW (690 V) 132 kW
Rated Short-time Withstand Current Low Voltage - Icw (A)	for 1 s 4 kA
Special Functions	No
Switching Type	Mechanism at the End of the Switch 04 (Left Side)
Type of Mounting	Base mounting
Brand	ABB
Cable Cross Section (mm²)	Cu 10 ... 70 mm²
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 160 A
Conventional Thermal Current - Ithe (A)	Fully Enclosed 160 A
Degree of Protection	Front IP20
Dimensions (mm)	130 * 150 * 73 [HWD]
Handle Colour	Black
Handle Type	Handle and shaft included
Lock Type	Yes
No. of Poles	4
Pollution Degree	3
Power Loss (W)	at Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current - Inc (kA)	(200 A fuse, 500 V) 100 kA (200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (kV)	12
Rated Operational Voltage AC (V)	Main Circuit 1000V
Standards	IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Tightening Torque (Nm)	acc. IEC 60947-1 6 N·m

Switch Disconnectors

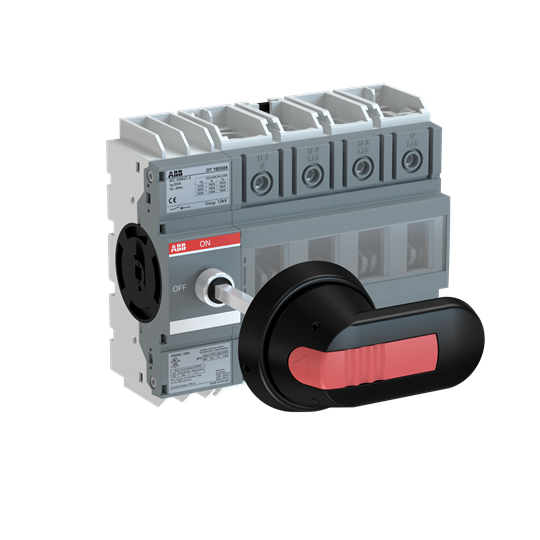

ABB SWITCH-DISCONNECTOR 160A 4P OT160G04P
