Clamp Type	Screw Terminals
Maximum Breaking Capacity	0
Mechanical Durability	20000
Rated Insulation Voltage	acc. to IEC/EN 60664-1 750 V
Rated Making Capacity AC-3	(690 V) 3.6 kA
Rated Operational Current AC-21A (A)	(380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A
Rated Operational Current AC-22A (A)	(380 ... 415 V) 125 A (500 V) 125 A (690 V) 125 A
Rated Operational Current AC-23A (A)	(380 ... 415 V) 90 A (500 V) 70 A (690 V) 50 A
Rated Operational Power AC-23A (kW)	(220 ... 240 V) 22 kW (400 ... 415 V) 45 kW (500 V) 45 kW (690 V) 45 kW
Rated Short-time Withstand Current Low Voltage - Icw (A)	for 1 s 2.5 kA
Special Functions	No
Type of Mounting	Base mounting
Brand	ABB
Cable Cross Section (mm²)	Cu 10 ... 70 mm²
Conventional Free-Air Thermal Current - Ith (A)	T = 40 °C 125 A
Conventional Thermal Current - Ithe (A)	Fully Enclosed 125 A
Degree of Protection	Front IP20
Dimensions (mm)	100 * 96.5 * 74 [HWD]
Handle Type	Knob Handle and shaft not included
Lock Type	No
No. of Poles	4
Pollution Degree	3
Power Loss (W)	at Rated Operating Conditions per Pole 6.3 W
Rated Conditional Short-Circuit Current - Inc (kA)	(125 A fuse, 415 V) 50 kA (125 A fuse, 690 V) 10 kA (63 A fuse, 690 V) 50 kA
Rated Current (A)	100 A
Rated Impulse Withstand Voltage (kV)	8
Rated Operational Voltage AC (V)	Main Circuit 750 V
Standards	IEC 60947-3
Tightening Torque (Nm)	acc. IEC 60947-1 6 N·m

Switch Disconnectors

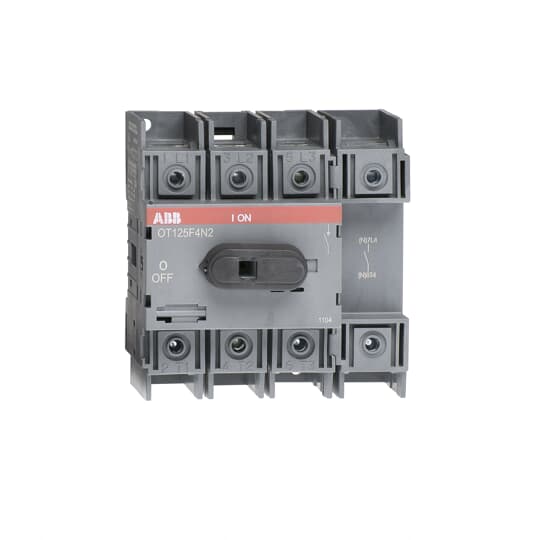

ABB SWITCH-DISCONNECTOR OT125F4N2
