Product Code: SFM3-63-50-275

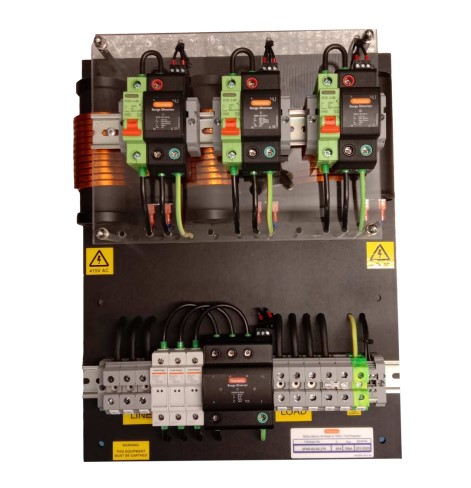

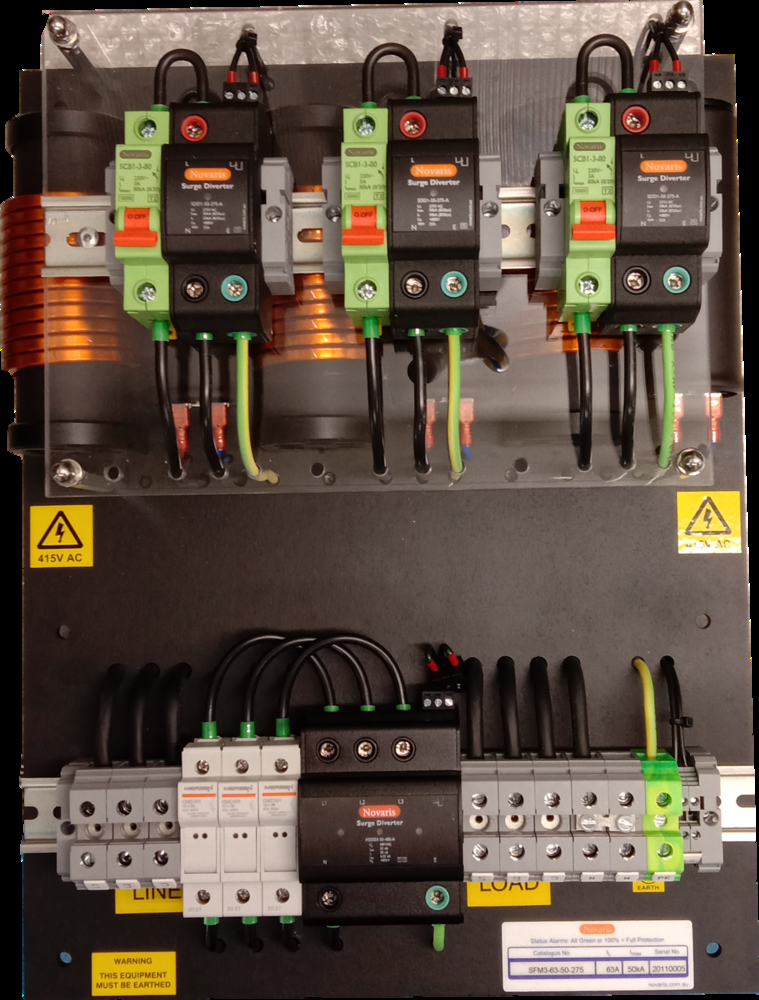

The Novaris SFM3-63-50-275 Medium Current Filters are designed to provide the highest level of protection for connected downstream equipment by installation at a main switchboard. They feature a digital display for device rating and segment status, three stages of varistor protection combined with a low pass LC filter, and all mode line protection (L-L, L-N, L-E, N-E). The product adheres to IEC and AS/NZS standards and includes a fail-safe alarm contact for remote monitoring.

Maximum Load Current - I? (A)	63
Voltage Protection Level (3kA 8/20µs) - Up (kV)	0.36 (L-N)
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	450H x 390W x 190D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	6.25
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA)	50
Mounting Type	Panel
No. of Phases	3
No. of Poles	3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SFM3
Standards and Approvals	IEC 61643-11, AS/NZS 1768
Weight (kg)	24
