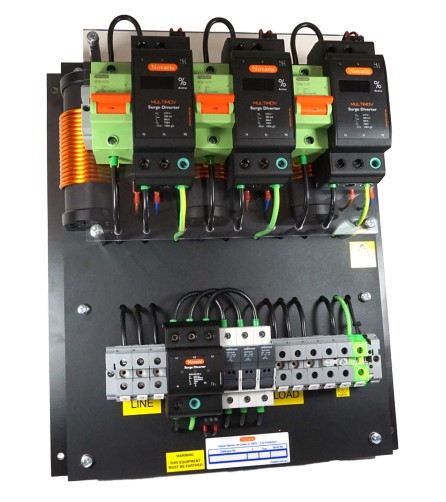

NOVARIS SURGE FILTER, 3-PHASE, 230VAC, 200KA SFM3-63-200-275

Product Code: SFM3-63-200-275

The Novaris SFM3-63-200-275 Medium Current Filters offer three stages of protection including two stages of varistor protection and a low pass LC filter. Designed for installation at a main switch board to protect downstream equipment, it includes features such as an active display and all-mode protection covering L-L, L-N, L-E, N-E combinations.

Technical Specifications

Maximum Load Current - I? (A) 63
Voltage Protection Level (3kA 8/20µs) - Up (kV) 0.305 (L-N)
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 450H x 390W x 190D
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA) 200
Mounting Type Panel
No. of Phases 3
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 80
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Series SFM3
Standards and Approvals IEC 61643-11, AS/NZS 1768
Weight (kg) 24
