Product Code: SD3-200-275

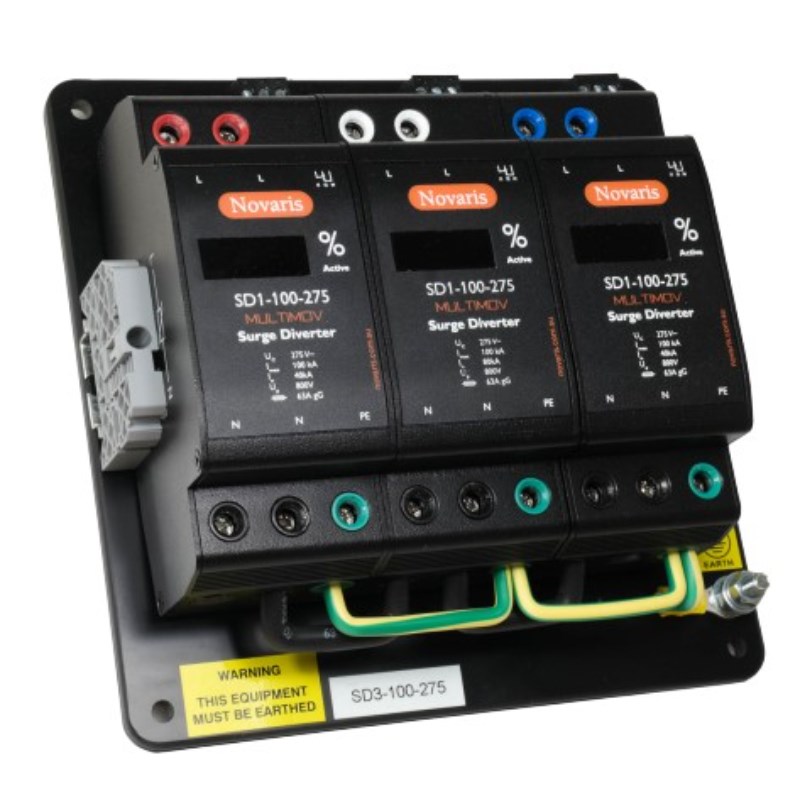

The MULTIMOV surge diverter is a 3-phase device designed to protect your main switchboard (MSB) from power surges. It has a nominal voltage of 230 VAC and a maximum continuous voltage of 275 VAC. The surge diverter can handle a maximum discharge current of 200 kA (L-N) in an 8/20ms time frame, and an impulse current of 25 kA (L-N) at 10/350ms. Its nominal discharge current is 80kA (L-N) at 8/20 ms. The voltage protection level is below 1700V (L-N) when operating at the nominal discharge current. The network type for this surge diverter is TN-C-S (MEN). It features a shunt connection, percentage active display, and a failsafe alarm contact that allows for remote monitoring.

Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	200W x 80H x 200L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	25 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA)	200 (L-N)
Mounting Type	Panel
No. of Phases	3
No. of Poles	3P+N PE
Nominal Discharge Current (8/20µs) - In (kA)	80 (L-N)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SD3
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	<1.7 (L-N)
Weight (kg)	2

Lightning & Surge Protection

NOVARIS THREE PHASE SURGE DIVERTER, 200KA MAX DISCHARGE SD3-200-275
