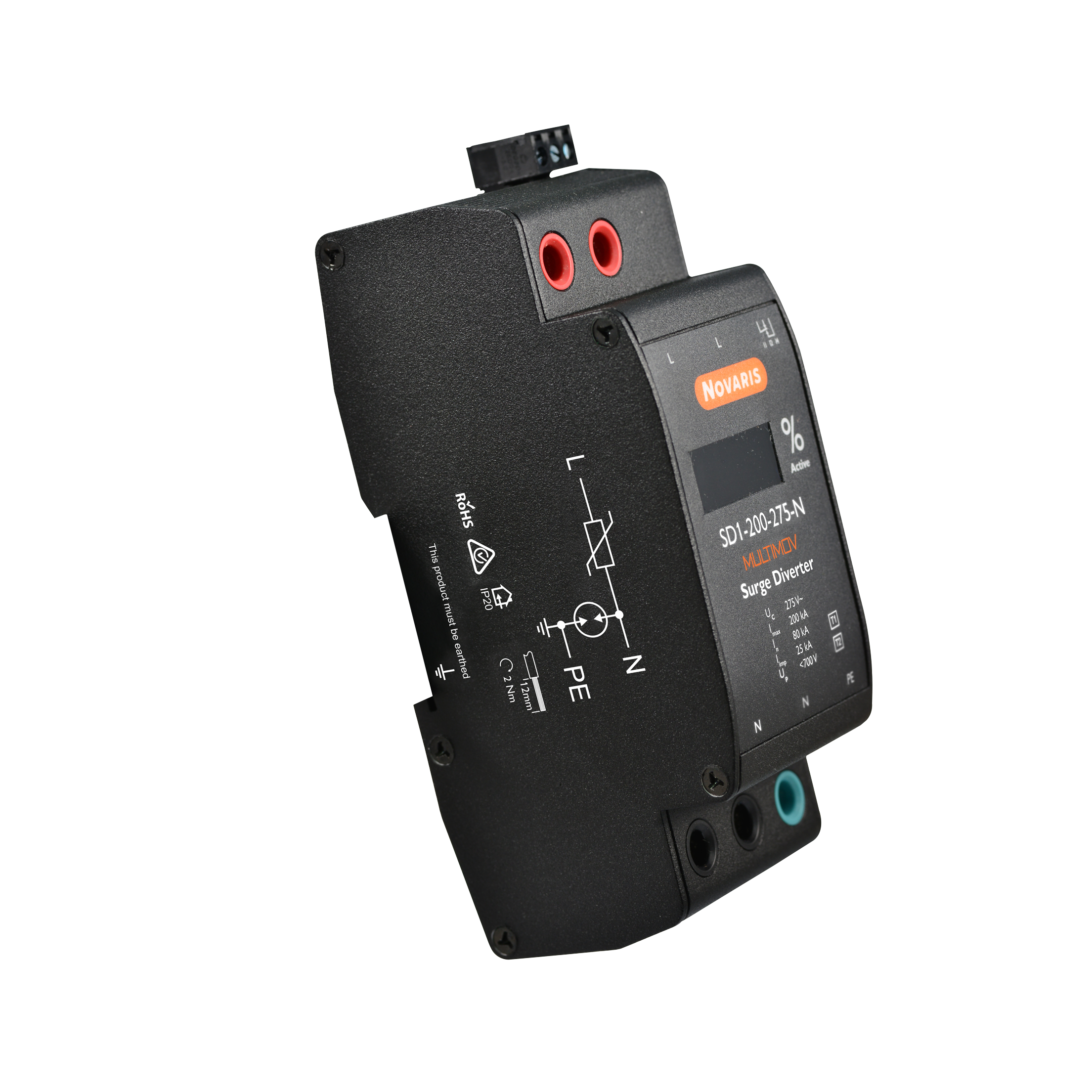

NOVARIS SURGE DIVERTER, MULTIMOV, 200KA, 275VAC SD1-200-275-N

Product Code: SD1-200-275-N

The Novaris SD1-200-275-N MULTIMOV Surge Diverter provides robust protection for electrical systems against surges. It features a redundant MOV design ensuring long life and exceptional surge handling capacity. With active monitoring and a safe metal enclosure, this product is ideal for securing main switchboards from electrical transients.

Technical Specifications

Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Dimensions (mm) 54W x 69H x 141L
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25 (L-N), 30 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 200 (L-N), 150 (N-PE)
Mounting Type DIN rail
No. of Phases 1
No. of Poles 1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 80 (L-N), 100 (N-PE)
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Series SD1
Standards and Approvals IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV) <1.7 (L-N), <1.8 (N-PE)
Weight (g) 565
