Product Code: SD1-150-275

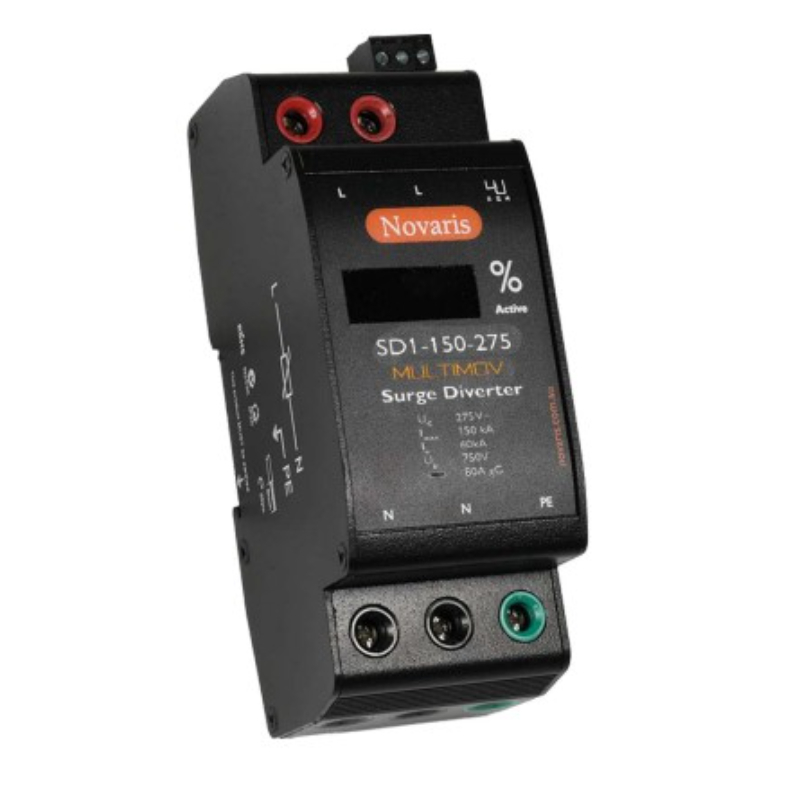

The Novaris SD1-150-275 MULTIMOV Surge Diverter is designed for point of entry protection at main switchboards. It features a parallel redundant arrangement of high energy metal oxide varistors (MOVs) to ensure long life and exceptional surge handling capacity. The digital display confirms the active status of redundant segments, while also indicating segment status and thermal overload. Enclosed in a safe, all-metal enclosure, this device offers reliable performance in various electrical settings.

Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	54W x 69H x 141L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	19 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N)
Maximum Discharge Current (8/20µs) - Imax (kA)	150 (L-N)
Mounting Type	DIN rail
No. of Phases	1
No. of Poles	1P+N PE
Nominal Discharge Current (8/20µs) - In (kA)	60 (L-N)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SD1
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	<1.6 (L-N)
Weight (g)	505
