Product Code: SDPV-50-1500

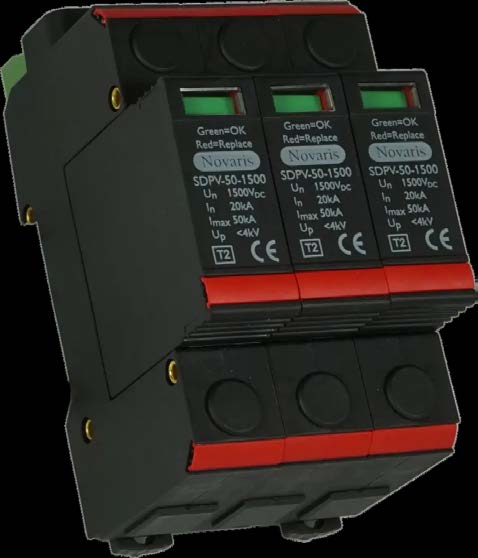

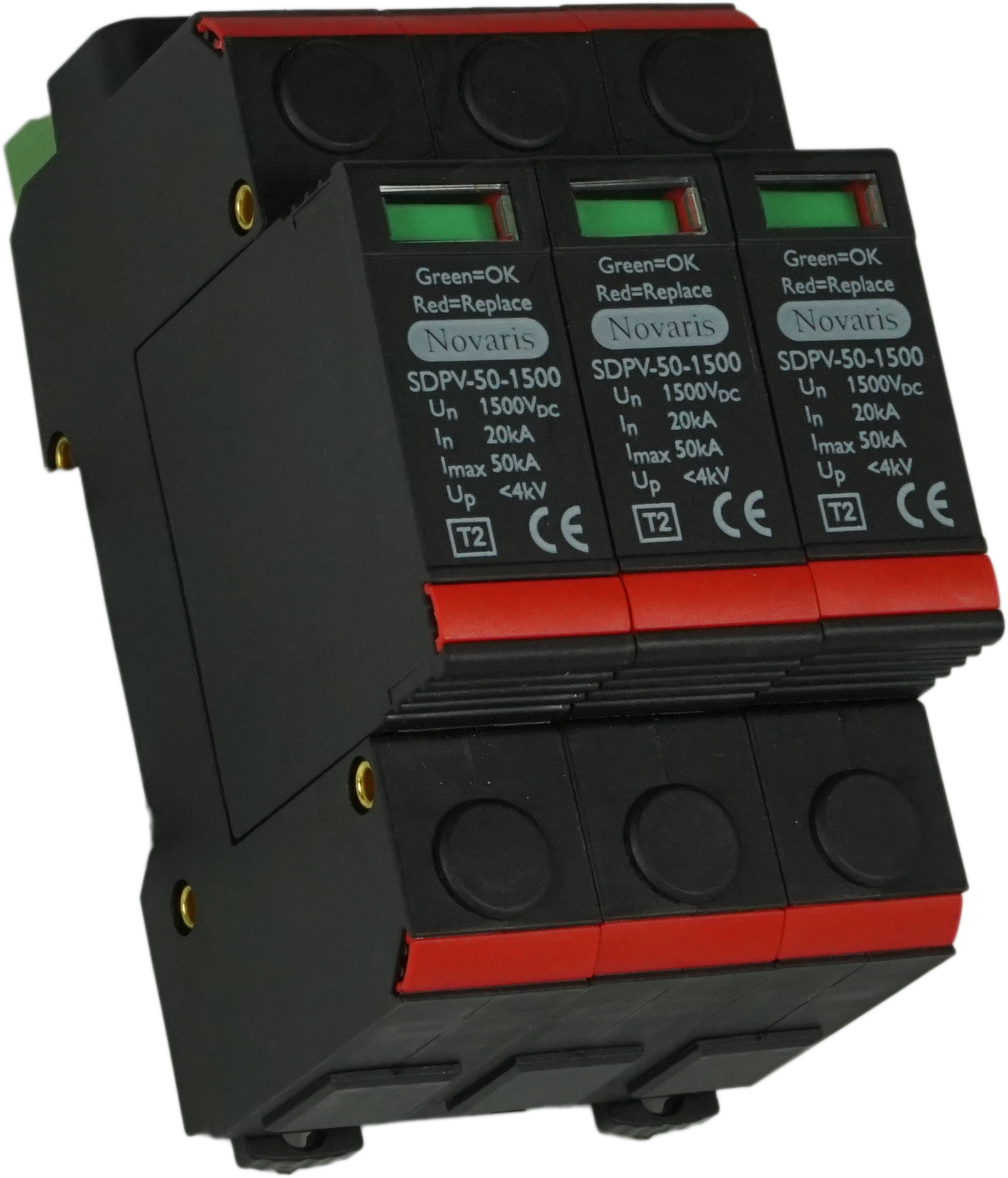

The Novaris SDPV Solar Protector is a surge protection device specifically designed to safeguard photovoltaic systems from damage due to lightning-induced surges or electrical overvoltages. This SPD is suitable for both indoor applications and offers a combination of Type1/Type2 protection, featuring remote alarm capabilities for thermal and protective segment failure detection, pluggable elements for easy maintenance, and robust electrical specifications to ensure the safety and longevity of solar installations.

Brand	NOVARIS
Nominal Voltage DC (V)	1500
Voltage Protection Level (1kV/µs) - Up (kV)	<4 (L-PE)
Voltage Protection Level (3kA 8/20µs) - Up (kV)	<4 (L-L)
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	54W x 66H x 100L
Maximum Continuous Operating Voltage MCOV AC (V)	1060 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V)	1500 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA)	50 (L-L, L-PE)
Mounting Type	DIN rail
No. of Phases	2
No. of Poles	2P+PE
Nominal Discharge Current (8/20µs) - In (kA)	20 (L-L, L-PE)
Operational Temperature Range (°C)	-40 to 85
Series	SDPV
Standards and Approvals	IEC61643-31, UL1449-4th
Weight (g)	500

Lightning & Surge Protection

NOVARIS SDPV-50-1500 SOLAR DC SPD T1/T2 1500VDC SDPV-50-1500
