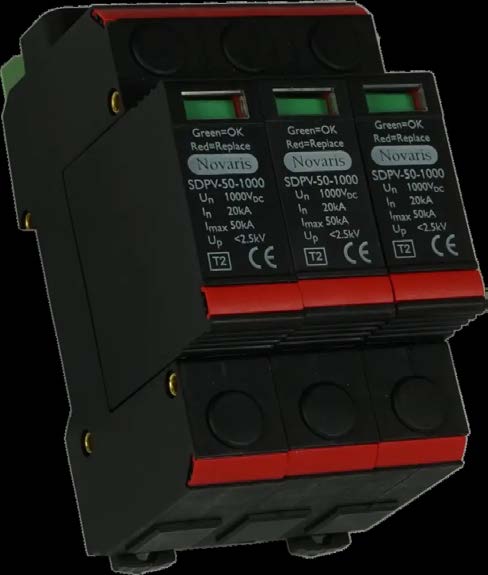

NOVARIS SOLAR DC SPD T1/T2, 1000VDC, 50KA SDPV-50-1000

Product Code: SDPV-50-1000

The Novaris SDPV Solar Protector is engineered to safeguard photovoltaic systems from the detrimental effects of surges caused by lightning strikes or voltage fluctuations. This SPD is a hybrid of Type1/Type2 and is suitable for indoor use on systems with a nominal voltage of up to 1000VDC. With a maximum discharge current capacity of up to 50kA and rapid response times below 25ns, it ensures robust protection for sensitive solar equipment.

Technical Specifications

Nominal Voltage DC (V) 1000
Voltage Protection Level (1kV/µs) - Up (kV) <4 (L-PE)
Voltage Protection Level (3kA 8/20µs) - Up (kV) <4 (L-L)
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Dimensions (mm) 54W x 66H x 100L
Maximum Continuous Operating Voltage MCOV AC (V) 710 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 1000 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 50 (L-L, L-PE)
Mounting Type DIN rail
No. of Phases 2
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-L, L-PE)
Operational Temperature Range (°C) -40 to 85
Series SDPV
Standards and Approvals IEC61643-31
Weight (g) 500
