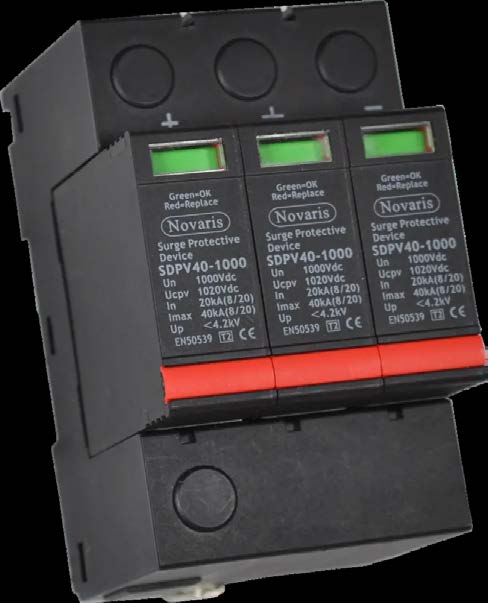

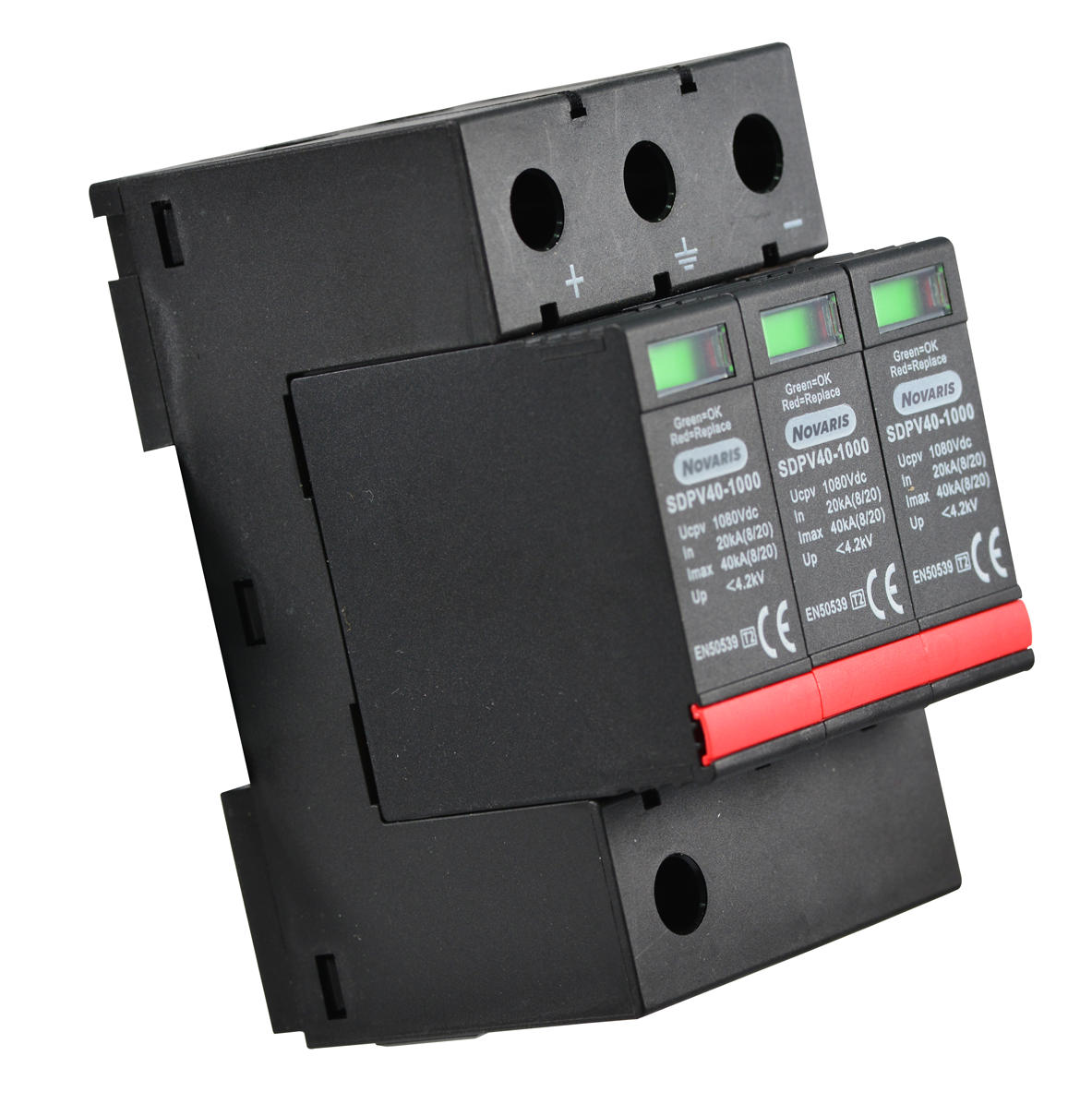

NOVARIS SOLAR DC SPD, TYPE1/TYPE2, 1000VDC, 40KA SDPV-40-1000

Product Code: SDPV-40-1000

The Novaris SDPV Solar Protector is a robust surge protection device specifically engineered for safeguarding photovoltaic system components from the detrimental effects of surges caused by lightning strikes or transient overvoltages. Equipped with replaceable pluggable elements and housed in a durable thermoplastic enclosure, it ensures continuous protection and easy maintenance. This device meets the stringent requirements of EN 50539-11 standards.

Technical Specifications

Nominal Voltage DC (V) 1000
Voltage Protection Level (1kV/µs) - Up (kV) <4.2 (L-PE)
Voltage Protection Level (3kA 8/20µs) - Up (kV) <4.2 (L-L)
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Dimensions (mm) 54W x 66H x 100L
Maximum Continuous Operating Voltage MCOV AC (V) 710 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V) 1000 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA) 40 (L-L, L-PE)
Mounting Type DIN rail
No. of Phases 2
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 (L-L, L-PE)
Operational Temperature Range (°C) -40 to 85
Series SDPV
Standards and Approvals EN50539-11
Weight (g) 325
