Product Code: IDD3-100-D480-A

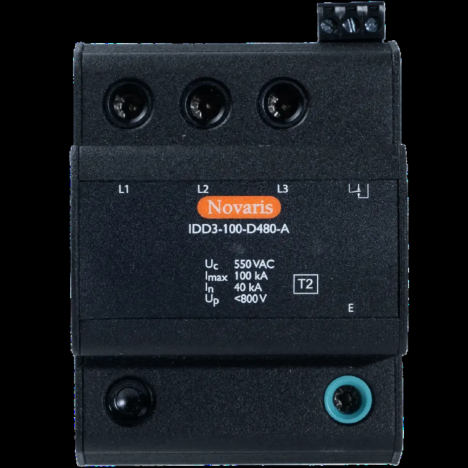

The Delta Connected Surge Diverter 3P+PE is a surge protection device designed for use in delta connected systems. It has a nominal voltage of 400VAC and a maximum continuous voltage of 480VAC & 670VDC. The surge diverter has a maximum discharge current of 100kA (L-PE) for an 8/20 ms duration and a lightning impulse current of 12.5kA (L-PE) for a 10/350 ms duration. Its nominal discharge current is 40kA (L-PE) for an 8/20 ms duration. The voltage protection level is <800V (L-PE) for a rate of rise of 1kV/ms and <1500V (L-PE) at the rated current. This surge diverter is also DIN compliant.

Alarm Contact	Yes
Brand	NOVARIS
Dimensions (mm)	72W x 70H x 95L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12.5 (L-PE)
Maximum Continuous Operating Voltage MCOV AC (V)	480 (L-L)
Maximum Continuous Operating Voltage MCOV DC (V)	670 (L-L)
Maximum Discharge Current (8/20µs) - Imax (kA)	100 (L-PE)
Mounting Type	DIN Rail
No. of Poles	3P+PE
Nominal Discharge Current (8/20µs) - In (kA)	40 (L-PE)
Nominal Voltage AC (V)	400
Series	IDD3
Voltage Protection Level - Up (kV)	<1.5 (L-PE)
Weight (g)	570
