Product Code: SDD3-50-275-A

The Surge Diverter is a 3-phase device designed to protect against voltage surges. It has a nominal voltage of 230 VAC and a maximum continuous voltage of 275 VAC. The maximum discharge current is 50 kA (L-N) and 25 kA (N-PE) at 8/20ms, while the nominal discharge current is 20 kA (L-N) and 10 kA (N-PE) at 8/20 us. The voltage protection level is 1250V (L-N) at the nominal discharge current. This surge diverter features a shunt connection and active alarms. The LED display indicates the phase status and normal operation when all LEDs are lit. It is suitable for use in domestic MSBs and industrial DBs.

Voltage Protection Level (3kA 8/20µs) - Up (kV)	<0.8 (L-N), <1.2 (N-PE)
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	54W x 70H x 95D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	6.25 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA)	50 (L-N), 25 (N-PE)
Mounting Type	DIN rail
No. of Phases	3
No. of Poles	3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	20 (L-N), 10 (N-PE)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SDD3
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	1.25 (L-N)
Weight (g)	410
Weight (kg)	0.41

Lightning & Surge Protection

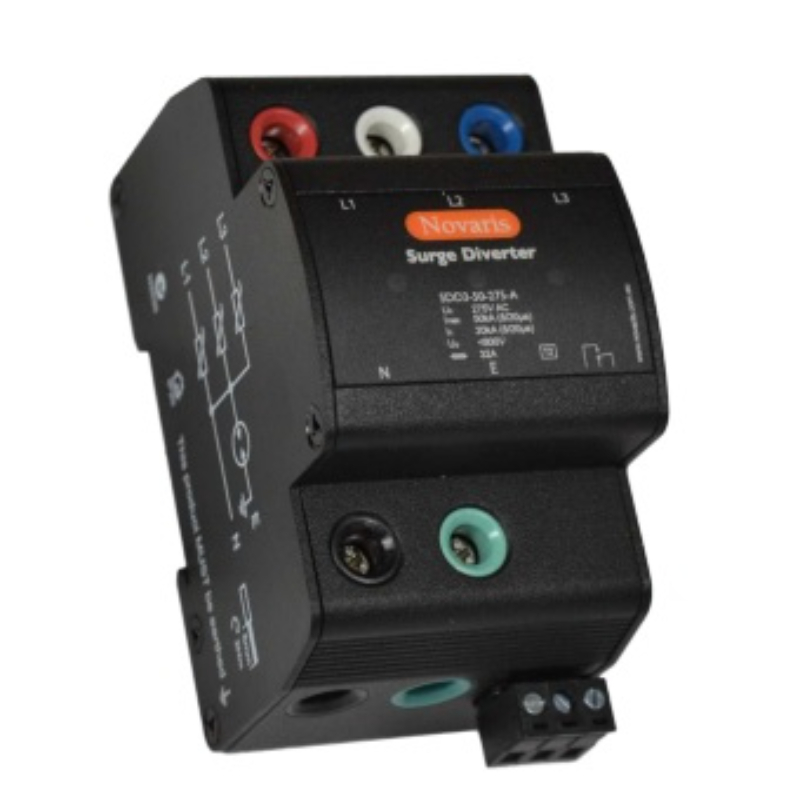

NOVARIS DINSAFE SURGE DIVERTER, 3-PHASE, 275VAC SDD3-50-275-A

Product Code: SDD3-50-275-A

Technical Specifications
