Product Code: SDD3-100-275

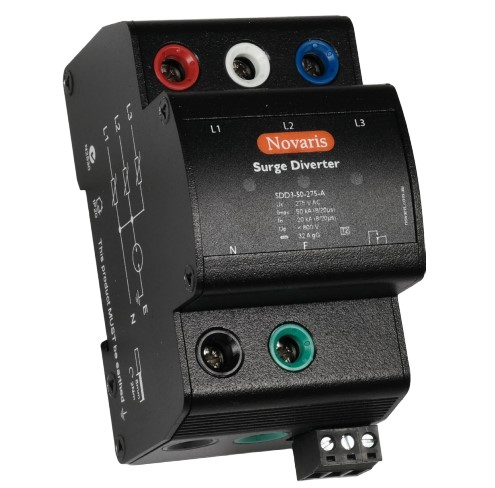

The Surge Diverter is a 3-phase device designed for domestic MSBs and industrial DBs. It provides protection against voltage surges with a nominal voltage of 230 VAC and a maximum continuous voltage of 275 VAC. The surge diverter has a maximum discharge current of 100 kA (L-N) and 60 kA (N-PE) at 8/20ms, as well as a nominal discharge current of 40 kA (L-N) and 50 kA (N-PE) at 8/20 us. With a shunt connection, the surge diverter features an LED display that indicates phase status and normal operation when all LEDs are lit. It offers a voltage protection level of 1400V (L-N) at the nominal discharge current.

Voltage Protection Level (3kA 8/20µs) - Up (kV)	<0.8 (L-N), <1.2 (N-PE)
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP20
Dimensions (mm)	95H x 72W x 70D
Lightning Impulse Current (10/350 µs) - Iimp (kA)	12.5 (L-N)
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA)	100 (L-N), 60 (N-PE)
Mounting Type	DIN rail
No. of Phases	3
No. of Poles	3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	40 (L-N), 50 (N-PE)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SDD3
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	1.4 (L-N)
