W66 Industrial IP66 Switchgear

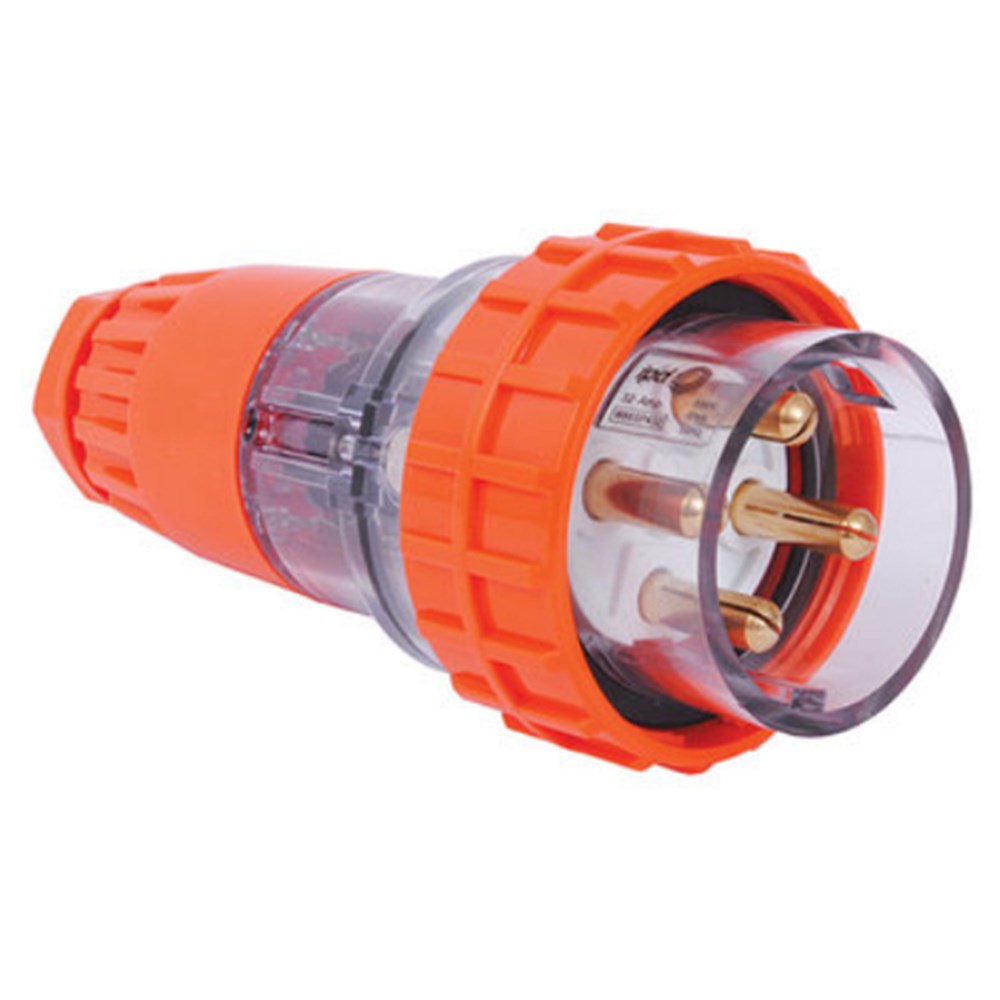

IPD STRAIGHT PLUG THREE PHASE 4 ROUND PINS 32A 500V, IP66 W66SP432

Product Code: W66SP432

This three-phase straight plug features four round pins and has an IP66 rating. It has a current rating of 32A and a voltage rating of 500V. The maximum cable area it can accommodate is 16mm², and it comes with gland style 3. The plug is equipped with stainless steel fixings and high grip threaded rings. Additionally, a gland is included with the plug.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Gland Entries 37mm
Gland Style Compression
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 32
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
