W66 Industrial IP66 Switchgear

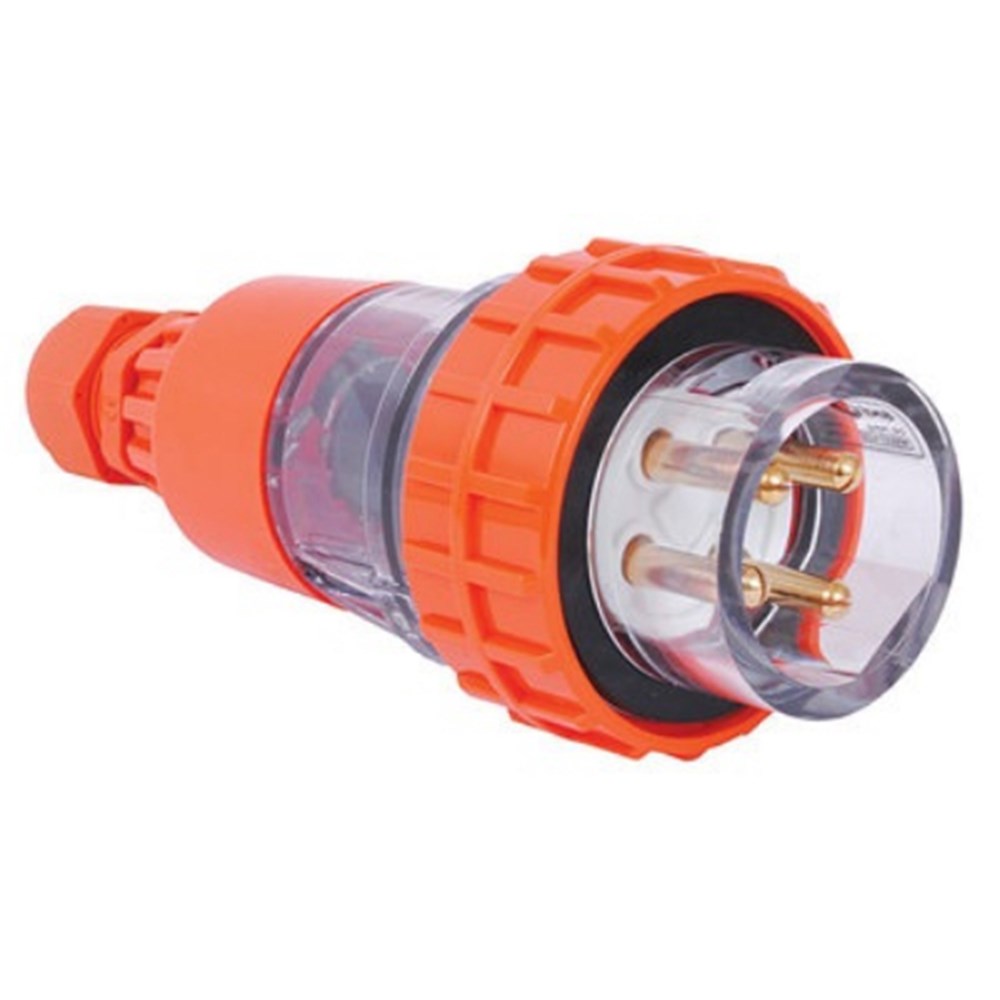

IPD STRAIGHT PLUG THREE PHASE 4 ROUND PINS 10A 500V, IP66 W66SP410

Product Code: W66SP410

This three-phase straight plug features four round pins and is rated IP66 for protection against dust and water. It has a current rating of 10A and a voltage rating of 500V. The maximum cable area it can accommodate is 6mm², and it comes with gland style 2 for secure cable connection. The plug is equipped with stainless steel fixings and high grip threaded rings for durability. A gland is included with the plug.

Technical Specifications

Brand IPD
Cover Style Clear/Orange
Degree of Protection IP66
Gland Entries M25
Gland Style Small Body
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 10
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123

Documents
