Control Element Colour	Black
Interlockable	Yes
No. of Switches	1
Padlockable	Padlockable in O-position
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Transition Type	Open
Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	315
Degree of Protection	IP20
Dimensions (mm)	265W x 185H x 203D
Handle Type	Pistol
Included	Handle, Shaft
Indication	I-O-II
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front
Mounting Type	Front Mount 4-hole
NEMA Degree of Protection	1
No. of Poles	4
Pollution Degree	3
Power Loss (W)	6.5
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-21A 415V (A)	315
Rated Operational Current AC-22A 415V (A)	315
Rated Operational Current AC-23A 380-415V (A)	315
Rated Operational Current AC-23A 415V (A)	315
Rated Operational Power AC-23A 380-415V (kW)	160
Rated Operational Power AC-23A 415V (kW)	160
Rated Operational Voltage (V)	1000
Rated Operational Voltage AC (V)	415
Rated Short-Time Withstand Current - Icw (kA)	8
Suitable For	Distribution Board Installation
Terminal Type	Bolt
Type	Main Switch
Weight (kg)	7.1

Changeover Switches

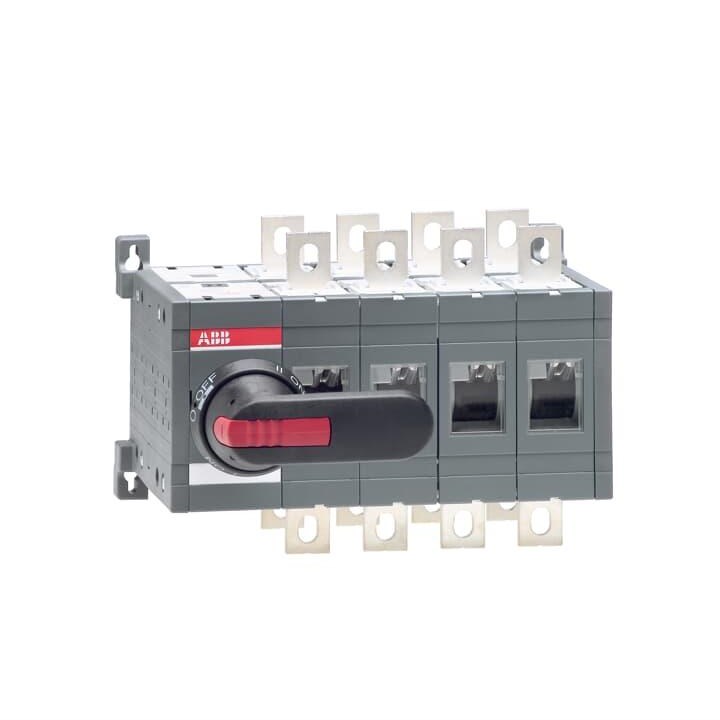

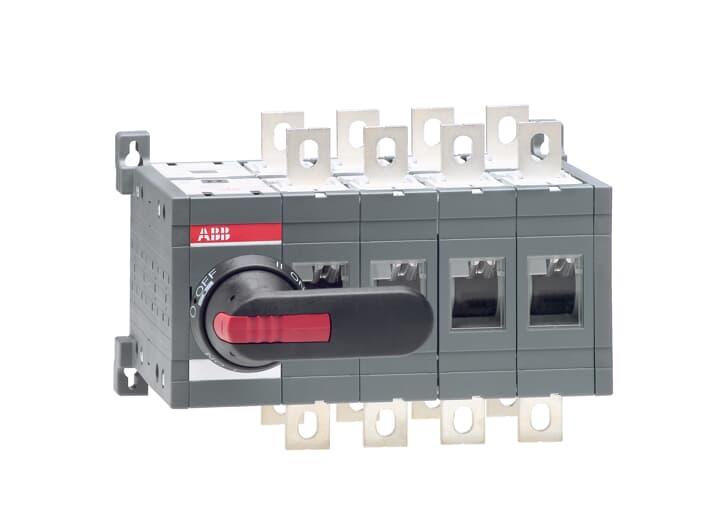

ABB OT315E04CP CHANGE-OVER SWITCH OT315E04CP
