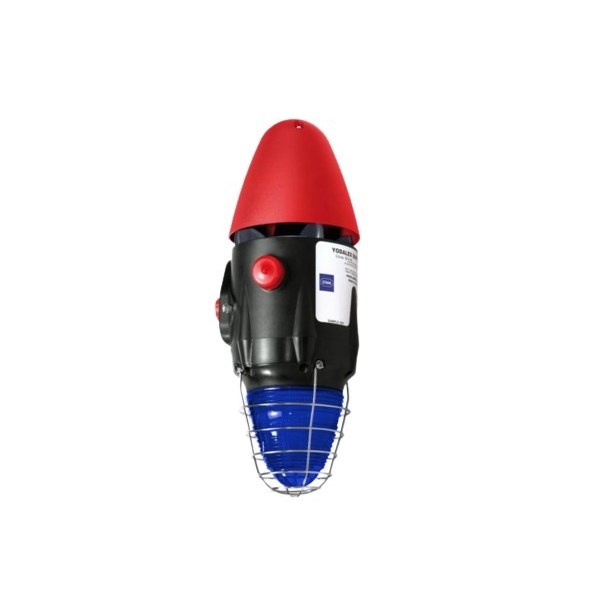

Stahl 225078 Combined Signal Device Xenon Horn/Flashing Beacon Lamp 24VDC Black Enclosure Blue Lens

Product Code: 225078

  • High protection: IP66, IP67 rated
  • Durable polyester resin with glass fibre
  • Wide temp range: -60 to 40°C
  • Certified ATEX, IECEx standards
  • Xenon horn/flashing beacon lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Combined Signal Device
Brand STAHL
Series YL6S
Ambient Temperature -60 to 40 deg C
Cable Cross Section 2.5 sq-mm
Colour Black Enclosure, Blue Lens
Connection Type Screw
Degree of Protection IP66, IP67
Height 403 mm
Lamp Type Xenon Horn/Flashing Beacon
Length 145 mm
Material Polyester Resin, Reinforced Glass Fibre
Rated Current 600 mA
Rated Voltage 24 VDC
Standards and Approvals ATEX (BAS), IECEx (BAS)
Width 178.5 mm

Description

<p>This industrial-grade product is designed to meet the rigorous demands of commercial and technical environments, offering a robust solution for those requiring reliable signaling equipment. Engineered with precision, this device provides exceptional performance under a wide range of conditions.</p><p>The enclosure is crafted from polyester resin reinforced with glass fibre, ensuring durability and resilience in challenging settings. Its black enclosure paired with a blue lens not only delivers an aesthetically pleasing appearance but also enhances visibility and functionality. With an impressive degree of protection rated at IP66 and IP67, this product is well-suited for outdoor use, effectively safeguarding against dust ingress and powerful water jets.</p><p>Operating efficiently within an ambient temperature range from -60&amp;#176;C to 40&amp;#176;C, it demonstrates versatility across various climates. This makes it particularly suitable for industries that operate in extreme environmental conditions. The product adheres to stringent standards such as ATEX (BAS) and IECEx (BAS), reinforcing its reliability in hazardous areas where safety compliance is paramount.</p><p>Electrical specifications include a rated current of 600 mA and a voltage rating of 24 VDC, making it compatible with standard power supplies used in industrial setups. The screw connection type facilitates secure wiring connections while accommodating cable cross-sections up to 2.5 sq-mm, providing flexibility during installation.</p><p>Measuring at a width of 178.5 mm, height of 403 mm, and length of 145 mm, the compact design ensures easy integration into existing systems without occupying excessive space. At the core of its operation lies a Xenon horn/flashing beacon lamp type that serves dual purposes: alerting through sound as well as visual signals—ideal for drawing attention quickly in critical situations.</p><p>In summary, this product offers a blend of high-performance capabilities backed by robust construction materials and adherence to international safety standards—making it an optimal choice for professionals seeking dependable signaling solutions within industrial or commercial applications.</p>
