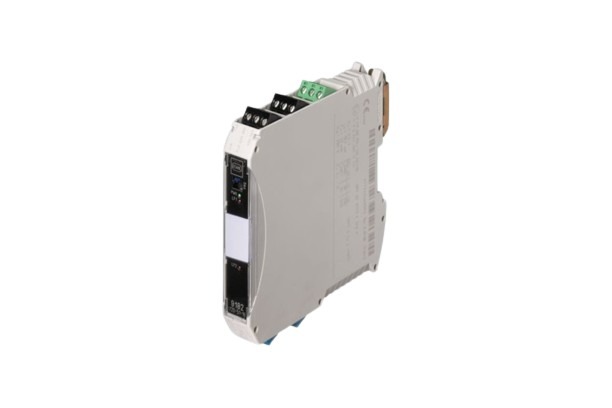

STAHL 9182/10-51-14S TEMPERATURE TRANSMITTER 201682

Product Code: 201682

9182 series temperature transmitters for field circuits can be used to connect temperature sensors and potentiometers. They are easy to configure for virtually any sensor type by means of software or a DIP switch. These sensor types include Pt100 sensors, thermocouples and potentiometers. Variants with a trip amplifier function allow the input signal to be analyzed using two independent electronic contacts.

Technical Specifications

Brand STAHL
No. of Channels 1
Nominal Voltage DC (V) 24
Ambient Temperature Range (°C) -20 to +70 (Single device), -20 to +60 (Group assembly)
Certifications ATEX (BVS), Brazil (ULB), Canada (FM), China (NEPSI), IECEx (BVS), India (PESO), Korea (KTL), SIL (exida), USA (FM)
Connection Type Screw Terminal
Degree of Protection IP30
Dimensions (mm) 17.6W x 114.5H x 114.5D
Weight (kg) 0.17
