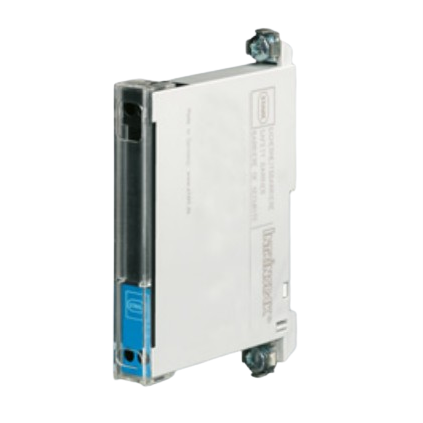

Stahl 158524 Safety Barrier 1 Ph

Product Code: 158524

  • Finely stranded, solid cable type
  • IP20/IP40 protection rating
  • Easy DIN rail mounting
  • Polyamide construction for durability
  • Wide temp range: -20 to 50°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Safety Barrier
Brand STAHL
Series 9001
Ambient Temperature -20 to 50 deg C
Cable Cross Section 1.5 sq-mm Earth, 4 sq-mm Maximum
Cable Type Finely Stranded, Solid
Degree of Protection IP20, IP40
Depth 72 mm
Material Polyamide
Mounting Type DIN Rail
Number of Channels 1
Rated Current 0.091 A
Rated Power 637 mW
Rated Voltage 28 V
Standards and Approvals ATEX (PTB), Brazil (ULB), Canada (CSA), China (NEPSI), IECEx (PTB), India (PESO), Japan (CML), Korea (KGS), USA (FM), USA (UL)
Width 103 mm

Description

<p>When selecting a product for industrial or commercial applications, the focus is often on reliability, safety, and compliance with international standards. This particular component stands out due to its adherence to multiple global certifications and robust design specifications.</p><p>Designed for versatility, this product accommodates finely stranded and solid cable types. It offers degrees of protection rated at IP20 and IP40, making it suitable for environments where moderate protection against dust ingress is required. The polyamide construction ensures durability while maintaining a lightweight profile essential for various industrial setups.</p><p>Installation is straightforward with DIN rail mounting compatibility, providing ease of integration into existing systems without requiring extensive modifications. This makes it an ideal choice when upgrading or expanding electrical systems in facilities.</p><p>Operating within an ambient temperature range of -20 to 50 degrees Celsius, this component maintains performance across diverse climatic conditions. Such resilience ensures reliability whether installed in cooler climates or warmer regions typical in some parts of Australia.</p><p>The product complies with numerous international standards and approvals including ATEX (PTB), Brazil (ULB), Canada (CSA), China (NEPSI), IECEx (PTB), India (PESO), Japan (CML), Korea (KGS), USA (FM) and USA (UL). These certifications confirm its suitability for use in hazardous locations as well as general-purpose applications worldwide.</p><p>With a rated current of 0.091 A and a rated voltage of 28 V, this component supports low power operations efficiently. The maximum cable cross-section capacity sits at 4 sq-mm while offering specific accommodation for earth cables up to 1.5 sq-mm ensuring flexibility in wiring configurations.</p><p>Measuring 103 mm in width and 72 mm in depth, the compact dimensions facilitate space-saving installations without compromising functionality or accessibility during maintenance activities. Rated power consumption at just 637 mW further underscores its efficiency by minimizing energy usage over prolonged periods of operation.</p><p>This combination of features positions the product as a reliable solution that meets stringent operational demands while adhering to international safety standards—making it suitable for professionals seeking dependable components tailored to their technical requirements.</p>
