Mounting Method	Wall Mount
Voltage Range AC (V)	200/346 to 240/415
Brand	STAHL
Ambient Temperature Range (°C)	-40 to +55
Auxiliary Contacts	1 NO + 1 NC
Certifications	ATEX (PTB), Brazil (ULB), China (CQST), IECEx (PTB), Korea (KGS), Taiwan (ITRI)
Colour	Red
Connection Type	Screw terminal
Current Rating (A)	63
Degree of Protection	IP66
Material	Polyester, Glass fibre reinforced (Enclosure)
No. of Holes	M25 x 1.5
No. of Poles	5
Weight (kg)	8.2

Hazardous Area Plugs & Sockets

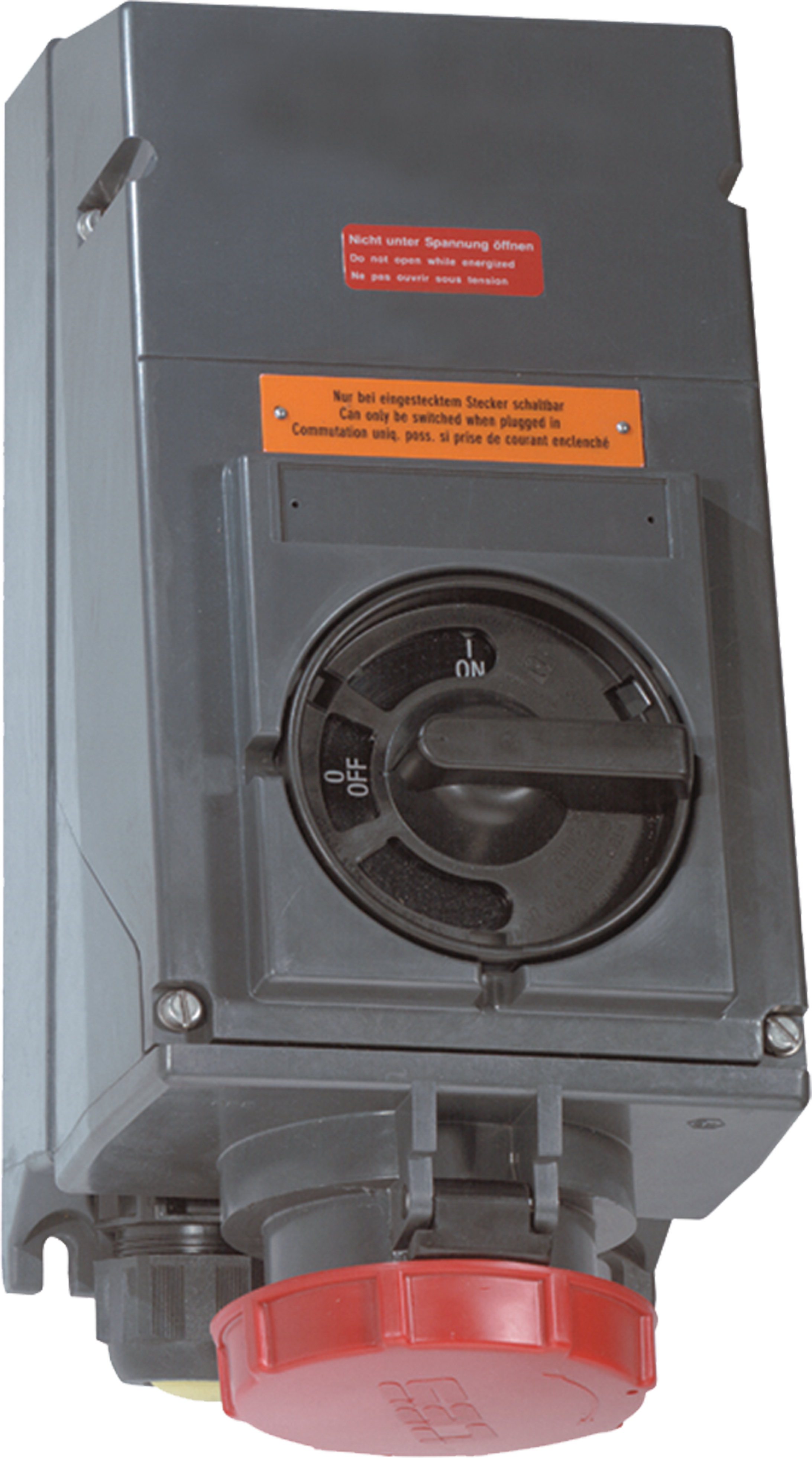

STAHL 8579/31-506 WALL MOUNTING SOCKET 63A 270900
