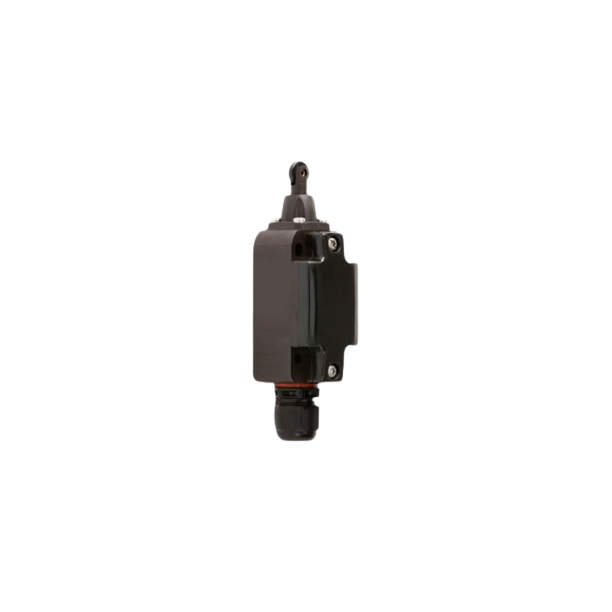

STAHL 8070/2-3-AZ-U50 POSITION SWITCHES 258241

Product Code: 258241

Ensure operational safety in hazardous environments with Stahl's 8070/2 Series Position Switches. These robust switches are designed with 2 NC contacts, capable of handling up to 400 VAC or 125 VDC with a maximum current of 4 A. They operate reliably within extreme temperature ranges from -60°C to +55°C and offer IP66 protection against dust and high-pressure water jets. As Ex E Components, they are ideal for use in areas where explosive atmospheres may be present. The separate actuator enhances safety, making these switches a dependable choice for critical applications.

Technical Specifications

Maximum Temperature (°C) 55
Minimum Temperature (°C) -60
Brand STAHL
Degree of Protection IP66
Mounting Type Threaded
No. of Poles 2
Series 8070/2
Standards and Approvals ATEX/IECeX
