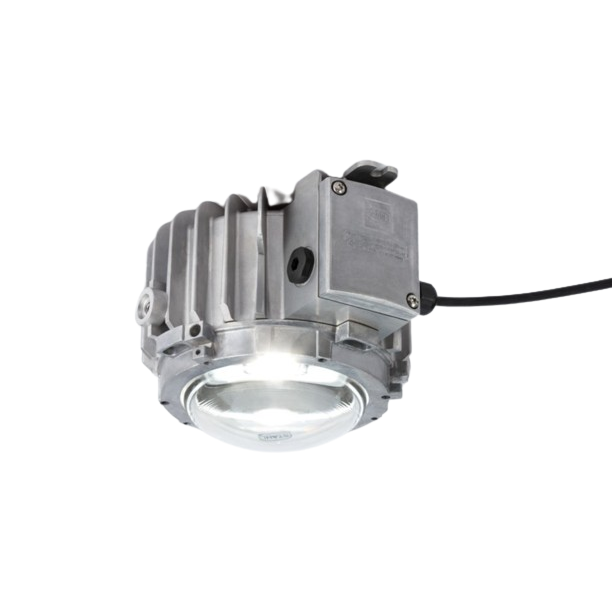

STAHL 6050/604-801-7B2-000850-002 PENDANT LIGHT FITTING LED 270017

Product Code: 270017

Explore the Stahl Series 6050/6 LED Pendant Light Fitting, designed for hazardous areas with a robust operational voltage range of 120 to 277 VAC. This efficient luminaire delivers a powerful output of 8800 lumens at an energy consumption of just 80W, translating to an impressive efficacy of 113 lm/W. The neutral white light is cast in a wide beam, perfect for expansive illumination. Engineered to perform in extreme temperatures from -40°C to +70°C and boasting superior ingress protection rated at IP66/IP68 (10m), this size 1 pendant ensures reliability and durability in challenging environments.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
Nominal Output Current (A) 0.36
Nominal Power (W) 80
Rated Maximum Operational Voltage AC (V) 277
Rated Minimum Operational Voltage AC (V) 120
Rated Operational Current (A) 0.36
Brand STAHL
Degree of Protection IP66/68
Mounting Type Surface
Series 6050/6
Standards and Approvals ATEX/IECeX
