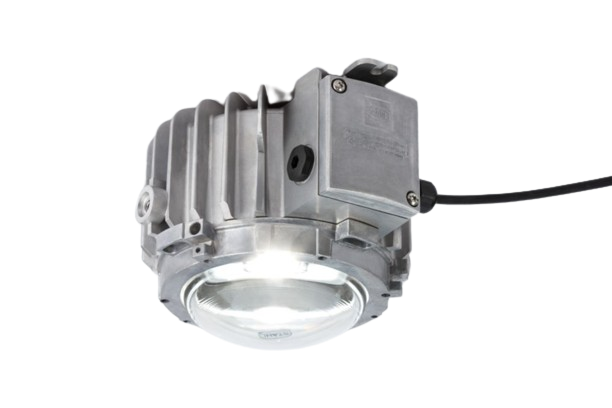

STAHL 6050/604-801-7B2-000850-001 PENDANT LIGHT FITTING LED 270015

Product Code: 270015

Illuminate hazardous areas with confidence using the Stahl Series 6050/6 LED Pendant Light Fitting. Designed for challenging environments, this luminaire operates efficiently on a voltage range of 220-240 VAC and draws a nominal current of 0.360 A. With an 80W power output, it casts a wide beam of neutral white light, ideal for a variety of industrial settings. Its robust construction ensures reliable performance in extreme temperatures ranging from -40°C to +70°C and offers superior protection with IP66/IP68 ratings, making it submersible up to 10 meters. Engineered for safety and durability, this size 1 pendant light is an optimal lighting solution for any hazardous area application.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
Nominal Output Current (A) 0.36
Rated Maximum Operational Voltage AC (V) 240
Rated Minimum Operational Voltage AC (V) 220
Rated Operational Current (A) 0.36
Brand STAHL
Degree of Protection IP66/68
Mounting Type Surface
Series 6050/6
Standards and Approvals ATEX/IECeX
