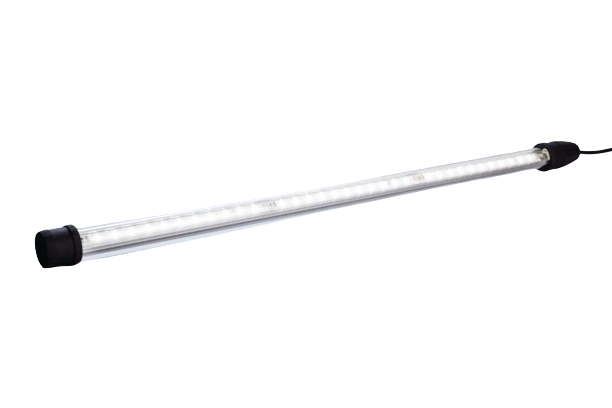

STAHL 6036/1248-450-0151-11 LED TUBULAR LIGHT FITTING 274247

Product Code: 274247

Discover the Stahl Series 6036 LED tubular light fitting, engineered for hazardous areas with a robust design that ensures optimal performance in extreme conditions ranging from -55°C to +60°C. This luminaire operates efficiently on both AC (220-240 VAC) and DC (209-240 VDC) power sources at 0.250 A, delivering a powerful output of 48 W. It features a single-row LED configuration that produces a neutral white light with an impressive luminous efficacy of 116 lm/W and a total light output of 5575 lm. The inclusion of a diffuser enhances light distribution, while the IP66/IP67 ratings guarantee protection against dust and water ingress, making it suitable for challenging environments. Trust in the reliability and safety offered by this lighting solution for your critical applications.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) -55
Nominal Output Current (A) 0.25
Nominal Power (W) 48
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 240
Rated Minimum Operational Voltage AC (V) 220
Rated Minimum Operational Voltage DC (V) 209
Rated Operational Current (A) 0.25
Brand STAHL
Degree of Protection IP66/67
Mounting Type Surface
Series 6036
Standards and Approvals ATEX/IECeX
