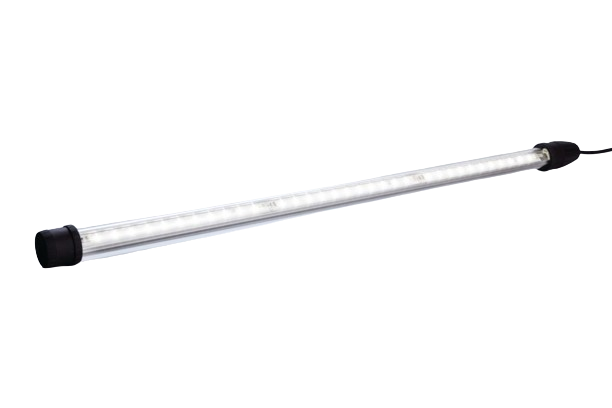

STAHL 6036/1212-453-0151-11 LED TUBULAR LIGHT FITTING 274309

Product Code: 274309

Explore the Stahl Series 6036 LED tubular light fitting, designed for hazardous areas with a robust build that ensures functionality in extreme temperatures ranging from -40°C to +70°C. This luminaire operates efficiently on a versatile voltage range of 24.00 to 48.00 VAC or DC and draws 0.700 A. With an output of 13 W, it delivers a high luminous efficacy of 104 lm/W, resulting in a bright 1396 lm output. The single-row LED configuration provides neutral white illumination, complemented by a diffuser for even light distribution. Rated IP66/IP67, this size 1 lighting solution is engineered to withstand demanding environments while ensuring safety and reliability.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
Nominal Output Current (A) 0.7
Nominal Power (W) 13
Rated Maximum Operational Voltage AC (V) 48
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage AC (V) 24
Rated Minimum Operational Voltage DC (V) 24
Rated Operational Current (A) 0.7
Brand STAHL
Degree of Protection IP66/67
Mounting Type Surface
Series 6036
Standards and Approvals ATEX/IECeX
