Product Code: CSXi022V4C1

The compact and lightweight soft starter is equipped with an integrated bypass contactor and motor protection. It has an input voltage range of 200-440V AC and a control voltage range of 110-240/380-440V AC. The current ratings for medium-duty applications are 48A, while heavy-duty applications have a current rating of 40A. The soft starter can handle a motor power of up to 22kW and offers various adjustments for enhanced control. It also features plug-in communication interfaces for easy connectivity. The dimensions of the soft starter are 98mm in width, 201mm in height, and 165mm in depth.

Brand	AuCom
Current Consumption (A)	10 (At power-up)
Degree of Protection	IP20
Dimensions (mm)	98W x 201H x 165D
EMC Emission	Equipment Class - A
Heat Dissipation During Run (W)	10 (Typical)
Heat Dissipation During Start (W/A)	3
Input Voltage AC (V)	Start: NO 300 (Max.)/ Stop: NC 300 (Max.)
Motor Power - Medium Duty 400-415V (kW)	22
Operational Temperature Range (°C)	-10 to +60
Pollution Degree	3
Rated Control Supply Voltage AC (V)	110- 240/380 - 440
Rated Current - Heavy Duty (A)	40
Rated Current - Medium Duty (A)	48
Rated Supply Voltage AC (V)	200 - 440
Standards and Approvals	C-tick, UL / C-UL, CE, CCC, Lloyds

Soft Starters

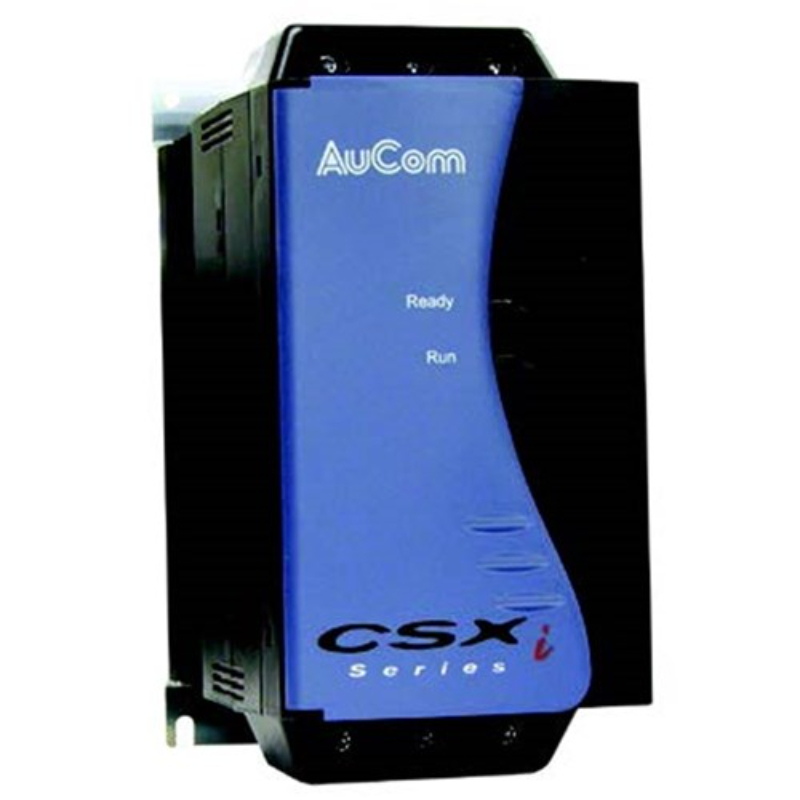

AuCom CSXi022V4C1 SOFT STARTER 22kW 48A 200-440VAC, CONTROL 110-240/380-440VAC
