Breaking Capacity AC (kA)	50
Maximum Continuous Voltage AC (V)	150
Mounting Method	DIN Rail 35mm
No. of Conductors	3
Brand	DEHN
Degree of Protection	IP20
Dimensions (mm)	54W x 90H x 66D
Maximum Discharge Current (8/20µs) - Imax (kA)	40
Nominal Discharge Current (8/20µs) - In (kA)	15
Nominal Voltage AC (V)	120/240
Reference No.	952318
Standards and Approvals	EN 61643-11
Suitable For	Power Supply Systems
Weight (kg)	0.306

Lightning & Surge Protection

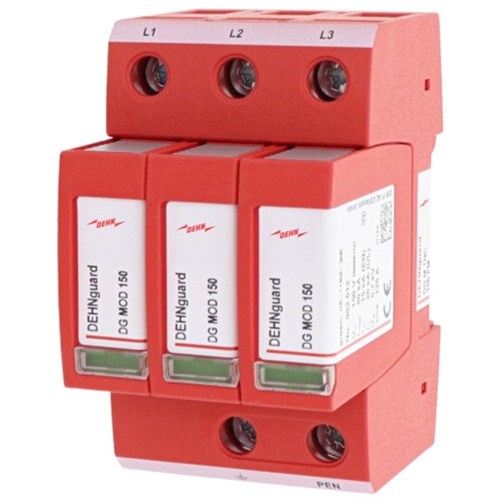

DEHN SPD 3POLE 40KA 8/20US 150VTYPE2 4 WIRE C/W CO TNC SYSTEM GUARD DGMTNC150FM
