Nominal Voltage (V)	230 / 400 V (50 / 60 Hz)
Overcurrent Protection	Max. 125 A gG Main Side
SPD Type	type 2 / class II
Type of Mounting	35 mm DIN rails acc. to EN 60715
Brand	DEHN
Cable Cross Section (mm²)	Min. 1.5 mm2 solid / flexible. Max. 35 mm2 stranded / 25 mm2 flexible
Nominal Discharge Current (8/20µs) - In (kA)	20
Operational Temperature Range (°C)	-40 °C ... +80 °C
Response Time (ns)	≤ 25
Suitable For	Indoor installation only.
Voltage Protection Level - Up (kV)	≤ 1.5

Lightning & Surge Protection

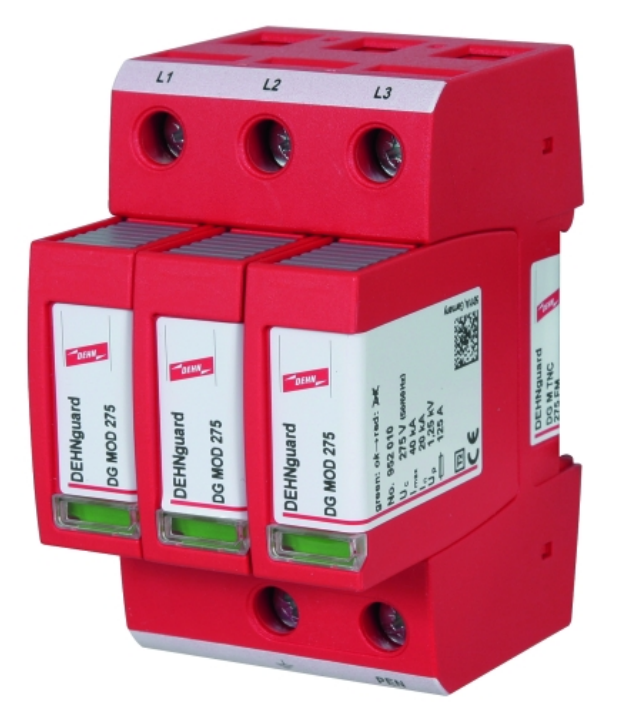

DEHN SPD 3P 40KA 8/20US 275V TYPE2 4 WIRE C/W CO TNC SYSTEM 952305 DEHNGUARD MEN DGMTNC275FM
