Fuse Size	NH2
Main Circuit Electrical Connection	Bolt Connection
Position of Control Element	Front Side
Power Dissipation at In (W)	100
Brand	ABB
Cable Entry	Side
Degree of Protection	IP41
Fixing Centres (mm)	185
Maximum Operational Voltage AC (V)	690
Mounting Type	Busbar Mount
No. of Poles	3
Rated Conditional Short-Circuit Current - Inc (kA)	120
Rated Current (A)	400
Rated Uninterrupted Current - Iu (A)	400
Rated Voltage AC (V)	690
Standards and Approvals	IEC 60947-3
Suitable For	NH2
Thickness (mm)	10
Type	Main Switch
Weight (kg)	15.5

Industrial Fuse Links

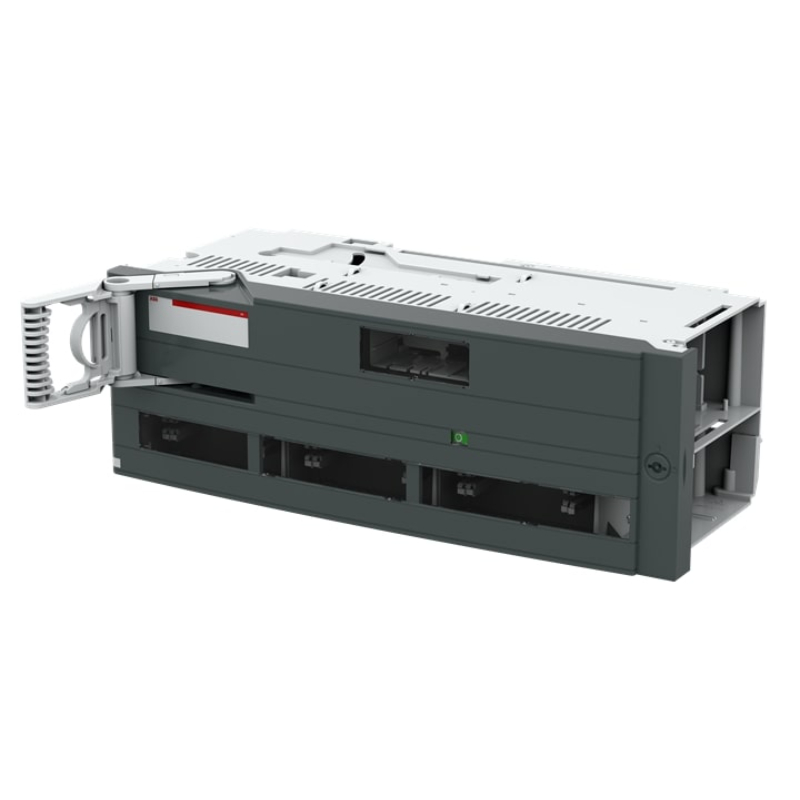

ABB XRG2-185/10-3P SWITCH DISCONNECTOR FUSE XRG2-185/10-3P
