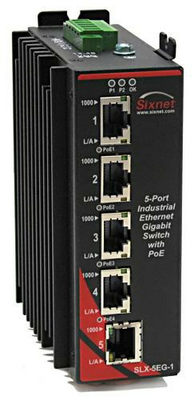

RED LION UNMANAGED POE ETHERNET SWITCH SLX-5EG-1

Product Code: SLX-5EG-1

The Gigabit PoE Industrial Ethernet Switch is a 5-port unmanaged switch designed for efficient network operation. It supports power input ranging from 10-44 VDC for non-PoE devices and 45-52 VDC for PoE devices. The switch features 5 connectors with 10/100/1000BaseTX RJ-45 ports, allowing for fast data throughput. It is built to withstand harsh environments with an IP40 rating. The switch can be mounted on a DIN rail or panel for easy installation.

Technical Specifications

Copper Type 10/100/1000
Brand RED LION
Configuration Fixed
Connector Type RJ45
Degree of Protection IP40
Dimensions (mm) 133.7H x 44.8W x 97.1D
Mounting Type DIN-Rail
No. of Ports 5 x Copper
Operational Temperature Range (°C) -40 to +85
Rated Operational Voltage DC (V) 10 - 56
Series Sixnet Networking
Standards and Approvals UL508, CSA C22.2/14, EN61010-1, CE
Switch Type Switch - Unmanaged
