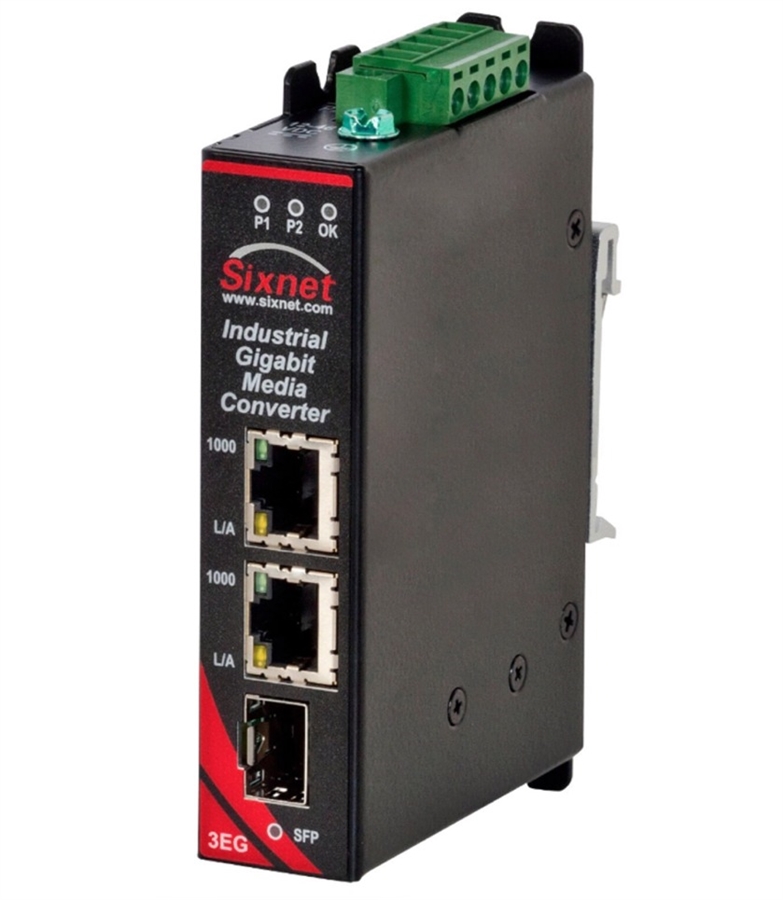

RED LION ETHERNET SWITCH 3 PORT UNMANAGED SLX-3EG-1SFP

Product Code: SLX-3EG-1SFP

The Ethernet Switch is a 3-port unmanaged device that operates with a power input of 12-48VDC. It features 2 x 10/100/1000BaseTX RJ-45 ports and 1 x 1000Base (optional) Mini-GBIC transceiver port. The switch supports plug and play operation, making it easy to set up and use. It is designed to withstand harsh environments and has an IP40 rating. The switch can be mounted on a DIN rail or panel for convenient installation.

Technical Specifications

Copper Type 10/100/1000
Fiber Type SFP
Brand RED LION
Configuration Fixed - SFP
Connector Type RJ45, SFP
Dimensions (mm) 114.3H x 25.4W x 76.2D
Mounting Type Chassis
No. of Ports 1 x Copper, 1 x Fiber
Operational Temperature Range (°C) -40 to +85
Rated Operational Voltage DC (V) 10 - 30
Series Sixnet Networking
Standards and Approvals UL508, CSA C22.2/14, EN61010-1, CE
Switch Type Unmanaged
