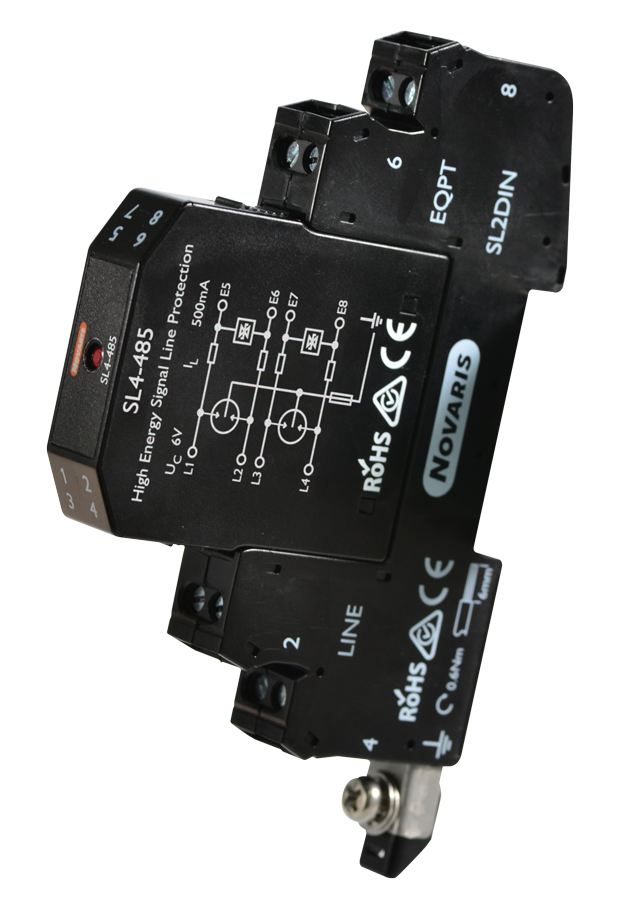

<p>When it comes to safeguarding your signal lines, a reliable protector can make all the difference in maintaining system integrity and preventing costly downtime. This Signal Line Protector is designed specifically for industrial and commercial applications, providing robust protection against voltage spikes and surges.</p><p>The unit operates with a rated voltage of 8 VDC, making it suitable for various low-voltage applications. It boasts an impressive rated current capacity—10 kA per line and 20 kA in common mode—which ensures that your equipment remains shielded from electrical disturbances.</p><p>Installation is straightforward thanks to its screw cage connection type, which offers secure and stable connections. The device&#39;s compact design, measuring just 12 mm in width, 71 mm in height, and 110 mm in depth, allows it to fit neatly onto TS35 DIN rails—a standard mounting solution that facilitates easy integration into existing setups.</p><p>Engineered for durability, this protector features an IP20 degree of protection. While it&#39;s not completely dust-tight or waterproof, it provides adequate protection against solid objects larger than 12.5 mm. Its polycarbonate construction adds further resilience while keeping the weight down to just 55 grams.</p><p>Operational efficiency is maintained across a broad temperature range from -40&#176;C to +70&#176;C—ideal for environments subject to extreme conditions. Moreover, the device functions effectively within humidity levels ranging from 5% to 95%, ensuring reliability under varying atmospheric conditions.</p><p>In terms of performance specs, the protector has a rapid response time of less than five nanoseconds (ns), allowing it to react swiftly during surge events. Its capacitance stands at 32 pF with a resistance of 3.9 Ohms—a balance that minimizes interference while maximizing protection efficacy.</p><p>For those adhering strictly to standards and approvals, this product meets several important benchmarks including IEC 61643-21 for surge protective devices connected to telecommunications networks as well as AS1768 for lightning protection guidelines among others like UL497 A/B standards.</p><p>The tightening torque required during installation is set at a precise value of 0.5 N-m ensuring optimal securement without compromising structural integrity or risking damage during setup processes.</p><p>With modes of protection covering both transverse and common modes across two pairs of lines simultaneously—the Voltage Protection Level peaks at a steady rate of up-to-35 volts—this versatile protector supports comprehensive safety measures tailored towards complex circuitry configurations often found within sophisticated technical infrastructures globally recognized by Australian/New Zealand Standards AS/NZS4117 &amp; AS7708 respectively enhancing user confidence through compliance credentials alone!</p>
