Product Code: SL485-EC90

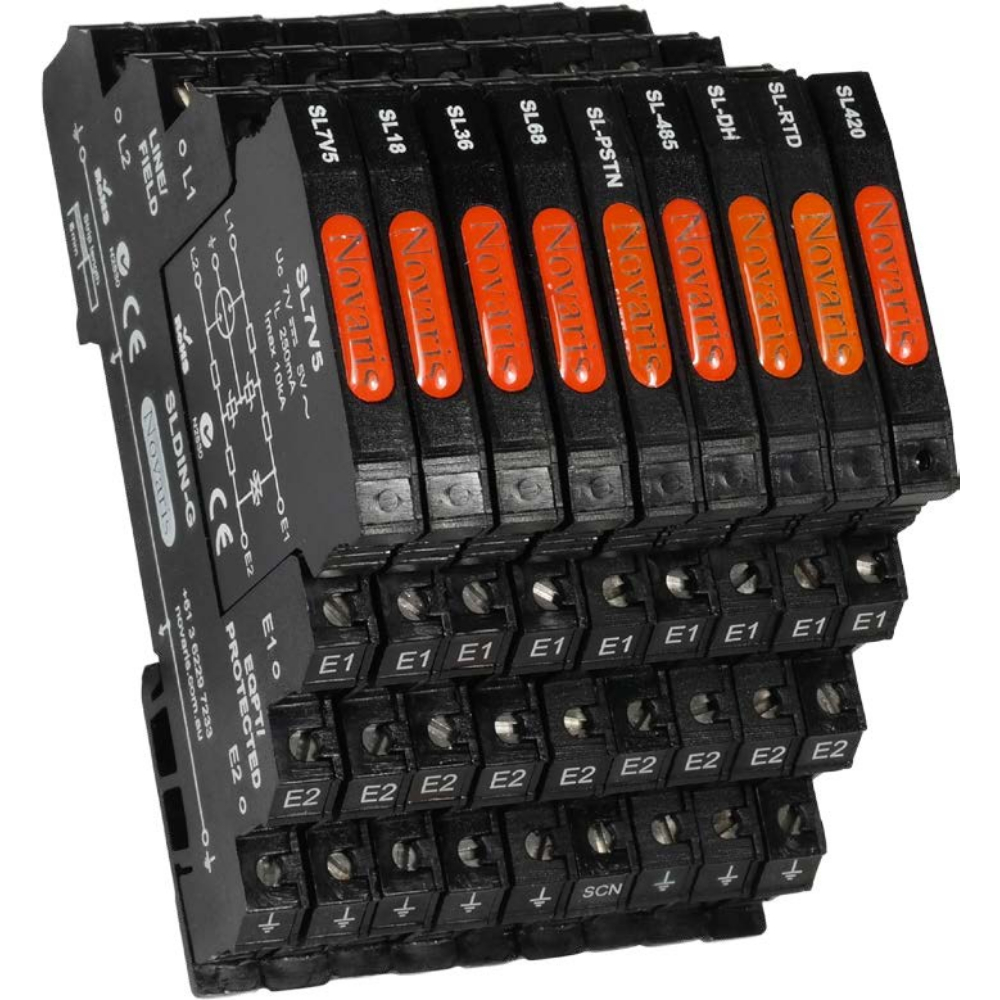

Signal Line Protector 1 pair Maximum continuous operating voltages (Uc) 8 VDC & 6 VAC, Maximum discharge current (Imax) at 8/20 s 5kA per line (10kA common mode), Maximum impulse current (Iimp) at 10/350 s 1.25 kA per line (2.5 kA common mode), Maximum load current (I ) 250 mA, Voltage protection levels (Up) at 1kV/ s <35V (L-L) & < 350 V (L-PE). Connection type series, replacement top module, EC90 base (90 V isolation between DIN rail earth and shield. Ideal for the protection of PLCs, fire and security systems, telecommunications and telemetry systems, railway signalling, SCADA and other industrial monitoring and control equipment. DIN rail mounting, IP20

Base Option	EC90
Maximum Load Current - I? (A)	0.25
No. of Pairs	1
Voltage Protection Level (1kV/µs) - Up (kV)	<0.035 (L-L) & < 0.35 (L-PE)
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	7W x 68H x 102L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1.25 (per line), 2.5 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V)	6
Maximum Continuous Operating Voltage MCOV DC (V)	8
Maximum Discharge Current (8/20µs) - Imax (kA)	5 (per line), 10 (common mode)
Mounting Type	DIN rail
Operational Temperature Range (°C)	-55 to 70
Standards and Approvals	IEC 61643-21, AS/NZS 1768, UL 1499 & UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117
Weight (g)	35
