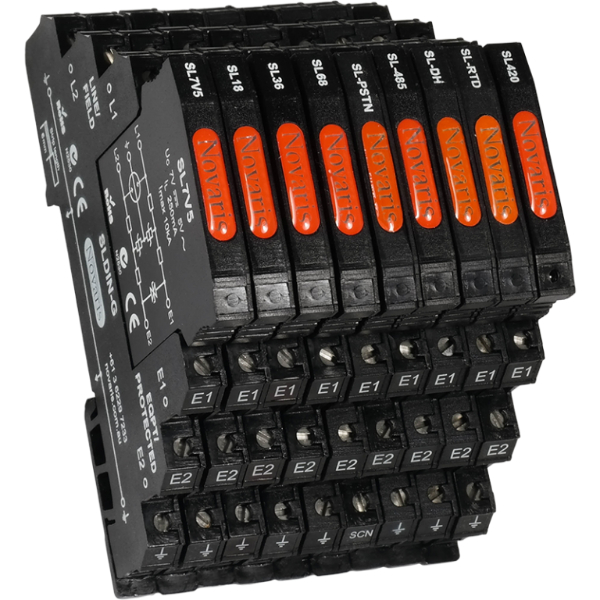

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL7V5-G

Product Code: SL7V5-G

The Slimline Signal Line protector is designed for both digital and analogue signal types. It features direct earthing and a series connection. This protector is capable of handling a maximum discharge current of 5 kA per line (10 kA common mode) with an 8/20 us waveform, and 1.25 kA per line (2.5 kA common mode) with a 10/350 us waveform.

Technical Specifications

Maximum Continuous Voltage AC - Uc (V) 5
Maximum Discharge Current (10/350µs) - Imax (kA) 1.25/Line
Maximum Load Current - I? (A) 0.25
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 7.5W X 102H X 68D
Housing Material Polycarbonate
Maximum Continuous Operating Voltage MCOV DC (V) 7
Maximum Discharge Current (8/20µs) - Imax (kA) 5/Line
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -55 to +70
Series SL7v5
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
Tightening Torque (Nm) 0.5
