NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL420-EC90

Product Code: SL420-EC90

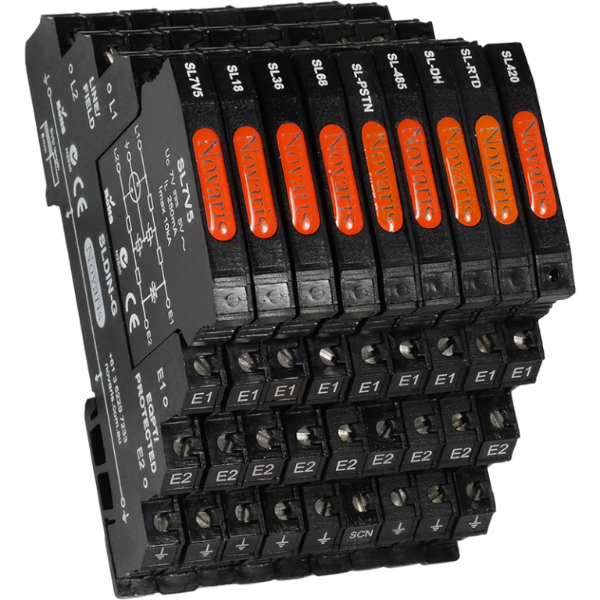

The Slimline Signal Line protector is designed with indirect earthing and features an LED indicator to display the status of the instrument loop. It is suitable for series connection and can protect 1 pair of lines. The maximum discharge current for each line is 5 kA (10 kA common mode) for a duration of 8/20 us, and 1.25 kA (2.5 kA common mode) for a duration of 10/350 us.

Technical Specifications

Maximum Discharge Current (10/350µs) - Imax (kA) 1.25/Line
Maximum Load Current - I? (A) 0.03
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 7.5WX102HX68D
Maximum Continuous Operating Voltage MCOV DC (V) 34
Maximum Discharge Current (8/20µs) - Imax (kA) 5/Line
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -55 to +70
Series SL420
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
Tightening Torque (Nm) 0.5
