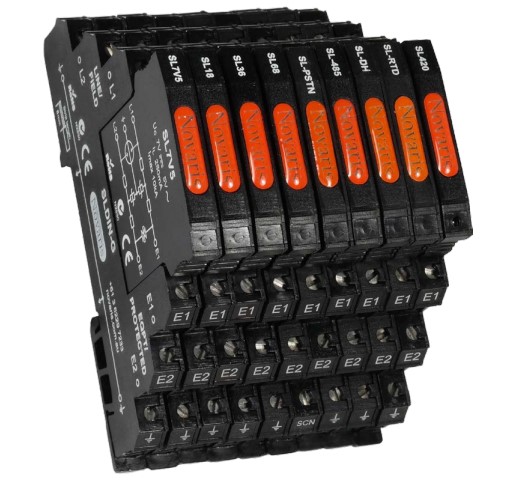

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL36-G

Product Code: SL36-G

Signal Line Protector 1 pair Maximum continuous operating voltages (Uc) 34VDC & 24VAC, Maximum discharge current (Imax) at 8/20µs 5 kA per line (10 kA common mode), Maximum impulse current (Iimp) at 10/350µs 1.25 kA per line (2.5 kA common mode), Maximum load current (I?) 250 mA, Voltage protection levels (Up) at 1kV/µs <45V (L-L) & < 350 V (L-PE). Connection type series, replacement top module. G Base (Earth connected to DIN rail). Ideal for the protection of PLCs, fire and security systems, telecommunications and telemetry systems, railway signalling, SCADA and other industrial monitoring and control equipment. DIN rail mounting, IP20

Technical Specifications

Brand NOVARIS
Base Option G
Connection Type Series
Degree of Protection IP20
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1.25 (per line), 2.5 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V) 24
Maximum Continuous Operating Voltage MCOV DC (V) 34
Maximum Discharge Current (8/20µs) - Imax (kA) 5 (per line), 10 (common mode)
Maximum Load Current - I? (A) 0.25
Mounting Type DIN rail
No. of Pairs 1
Operational Temperature Range (°C) -55 to 70
Standards and Approvals IEC 61643-21, AS/NZS 1768, UL 1499 & UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117
Voltage Protection Level (1kV/µs) - Up (kV) <0.045 (L-L) & < 0.350 (L-PE)
