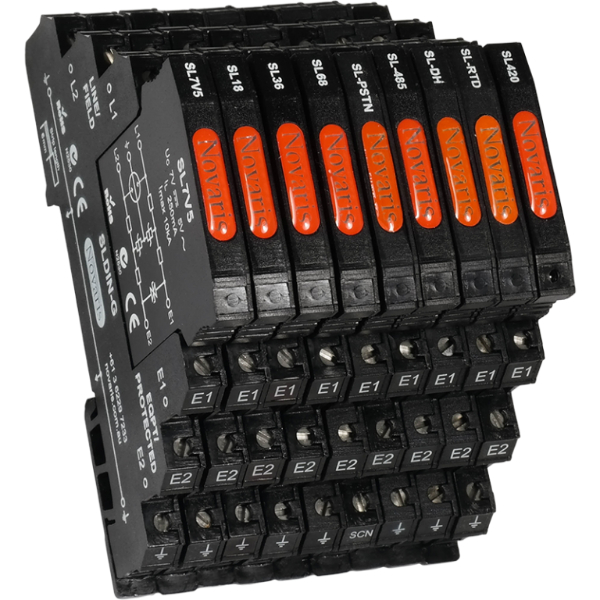

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL36-EC90

Product Code: SL36-EC90

Slimline Signal Line protector, digital/analogue signal type with indirect earthing,series connection, 1 pair of lines with maximum discharge current (8/20 µs) - 5 kA per line (10 kA common mode), Maximum discharge current (10/350 µs) - 1.25 kA per line (2.5 kA common mode)

Technical Specifications

Maximum Discharge Current (10/350µs) - Imax (kA) 1.25/Line
Maximum Load Current - I? (A) 0.25
Brand NOVARIS
Analogue Signal - Voltage (V) 5, 12, 24, 48
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 7.5W X 102H X 68D
Housing Material Polycarbonate
Maximum Continuous Operating Voltage MCOV AC (V) 24
Maximum Continuous Operating Voltage MCOV DC (V) 34
Maximum Discharge Current (8/20µs) - Imax (kA) 5/Line
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -55 to +70
Series SL36
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
Tightening Torque (Nm) 0.5
