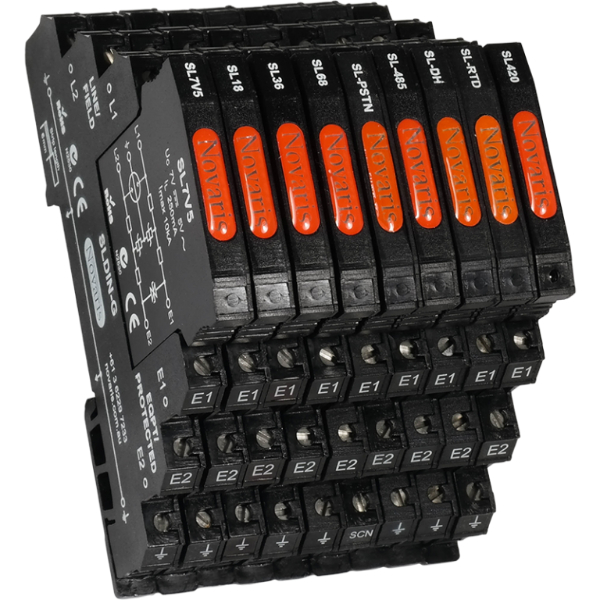

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 10kA SL18-G

Product Code: SL18-G

The Slimline Signal Line Protector is designed for direct earthing and series connection. It features 1 pair of lines with a maximum discharge current of 5 kA per line (10 kA common mode) for a duration of 8/20 us. Additionally, it has a maximum discharge current of 1.25 kA per line (2.5 kA common mode) for a duration of 10/350 us.

Technical Specifications

Maximum Discharge Current (10/350µs) - Imax (kA) 1.25/Line
Maximum Load Current - I? (A) 0.25
Voltage Protection Level (1kV/µs) - Up (kV) 0.03
Brand NOVARIS
Analogue Signal - Voltage (V) 5, 12, 24, 48
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 7.5W X 102H X 68D
Housing Material Polycarbonate
Maximum Continuous Operating Voltage MCOV AC (V) 11
Maximum Continuous Operating Voltage MCOV DC (V) 16
Maximum Discharge Current (8/20µs) - Imax (kA) 5/Line
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -55 to +70
Series SL18
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
Tightening Torque (Nm) 0.5
