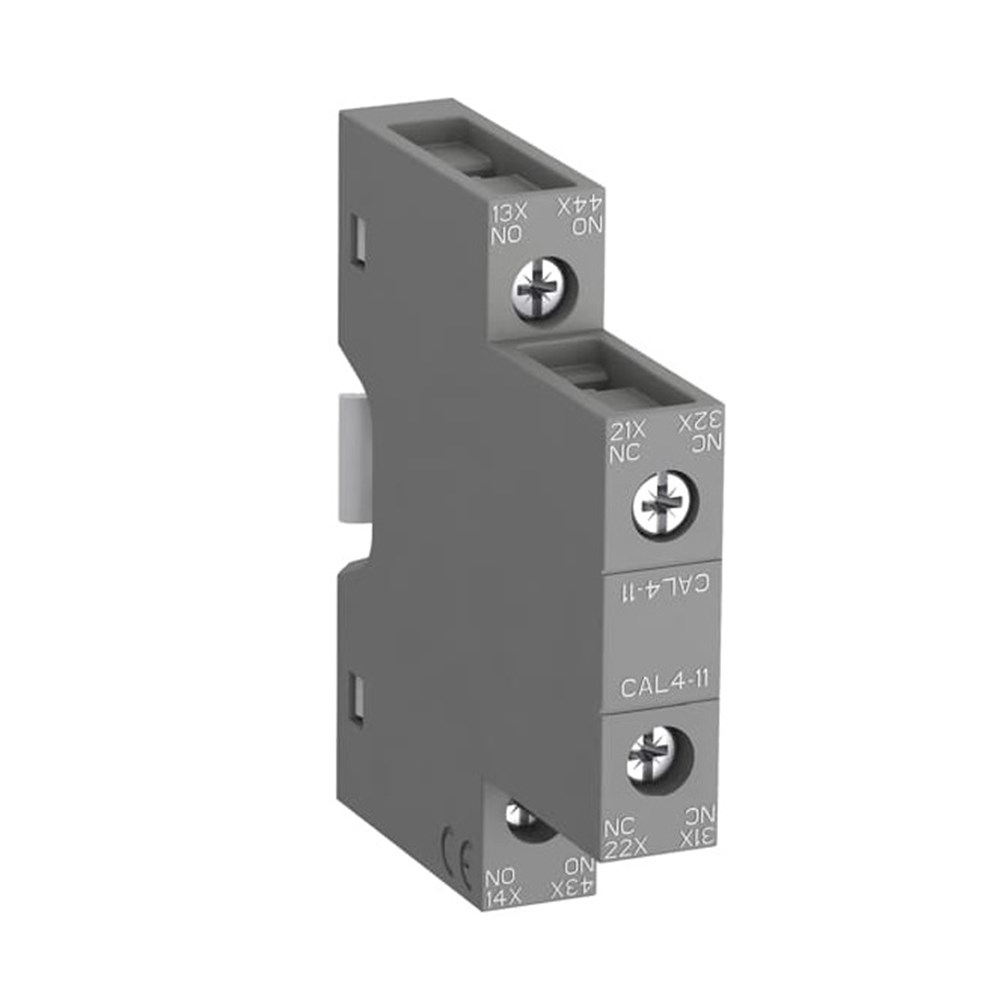

ABB CAL4-11 AUXILIARY CONTACT BLOCK CAL411

Product Code: CAL411

CAL4-11 is a 2-pole side mounted auxiliary contact block equipped with screw terminals and can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays. CAL4 auxiliary contact block can be clipped onto the right- and/or left-hand side of the contactors or the contactor relays and bears the corresponding function marking. CAL4-11 is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments.

Technical Specifications

Rated Operational Current AC-15 230V (A) 4
Brand ABB
Auxiliary Contacts 1NO/1NC
Connection Type Screw Connection
Dimensions (mm) 12W x 69.4H x 60D
Model Clip-on
Mounting Type Side Mount
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Voltage AC (V) 24 - 690
Suitable For AF09 - AF96
Terminal Type Screw
