Brand	ABB
Auxiliary Circuit Connecting Capacity	Flexible with Ferrule 1/2 x 0.75 - 2.5mm² Flexible with Insulated Ferrule 1 x 0.75 - 2.5mm² Flexible with Insulated Ferrule 2 x 0.75 - 1.5mm² Flexible 1/2 x 0.75 - 2.5mm² Rigid 1/2 x 1 - 4mm²
Mounting Position	Left
Recommended Screwdriver	Pozidriv 2
Ambient Temperature Range (°C)	-25 to 60
Dimensions (mm)	18W x 90H x 75.5D
Mounting Type	Left
Rated Control Supply Voltage AC (V)	200 - 240 (50/60Hz) 250 - 350V (50/60Hz ON-Period = 5s) 200 - 350V (DC ON-Period = 5s)
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Standards and Approvals	CSA 22.2 No.14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, UL60947-1, UL60947-4-1
Storage Temperature Range (°C)	-50 to 80
Suitable For	MS116, MS132, MO132, MS165, MO165
Terminal Type	Screw Terminals
Tightening Torque (Nm)	Auxiliary Circuit: 0.8 - 1.2Nm
Weight (kg)	0.1
Wire Stripping Length (mm)	Auxiliary Contact: 10mm

Motor Protection & Motor Starters

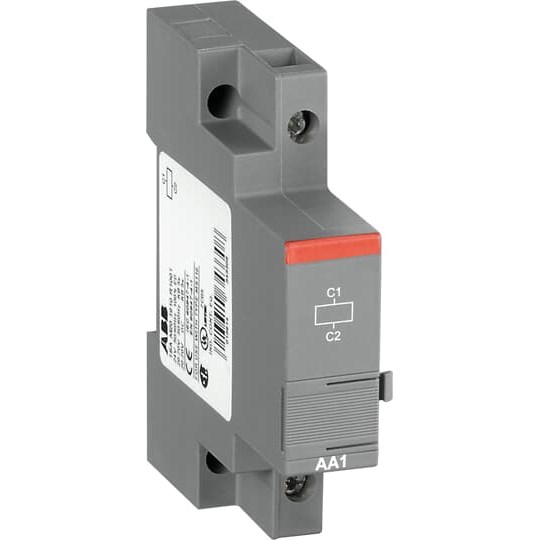

ABB SHUNT TRIP 200-240V AC LEFT MOUNT AA1-230
