Impulse Durability	C2 10 x 2.5kA 8/20µs
L-L Capacitance (nF)	16
L-L Voltage Protection Level at 1 kV/µs (V)	75
L-L Voltage Protection Level at 100V/s (V)	55
L-L Voltage Protection Level at 3kA 8/20µs (V)	105
L-PE Capacitance (nF)	16
L-PE Voltage Protection Level at 100V/s (V)	55
L-PE Voltage Protection Level at 1kV/µs (V)	75
L-PE Voltage Protection Level at 3kA 8/20µs (V)	105
Line Resistance (O)	0.02
Maximum Continuous Voltage AC (V)	30
Maximum Continuous Voltage DC (V)	38
Maximum Discharge Current (8/20µs) (kA)	4.8 per Line
Maximum Load Current - I? (A)	6
Modes of Protection	Transverse & Common
No. of Lines	1 Pair
Brand	NOVARIS
Ambient Temperature Range (°C)	-40 to 70
Colour	Black
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	7W x 102H x 68D
Enclosure Material	Polycarbonate
Humidity	5 to 95%
Material	Polycarbonate UL 94 V-0
Maximum Discharge Current (8/20µs) - Imax (kA)	4.8kA per Line (9.6kA Common Mode)
Mounting Type	TS35 DIN Rail
Operating Humidity	5 to 95% RH (No Condensation)
Operational Temperature Range (°C)	-40 to 70
Response Time (ns)	5
Standards and Approvals	IEC 61643-21:2012, AS/NZS 1768:2007, UL 1499 3rd edition & UL 497B
Weight (g)	35

Lightning & Surge Protection

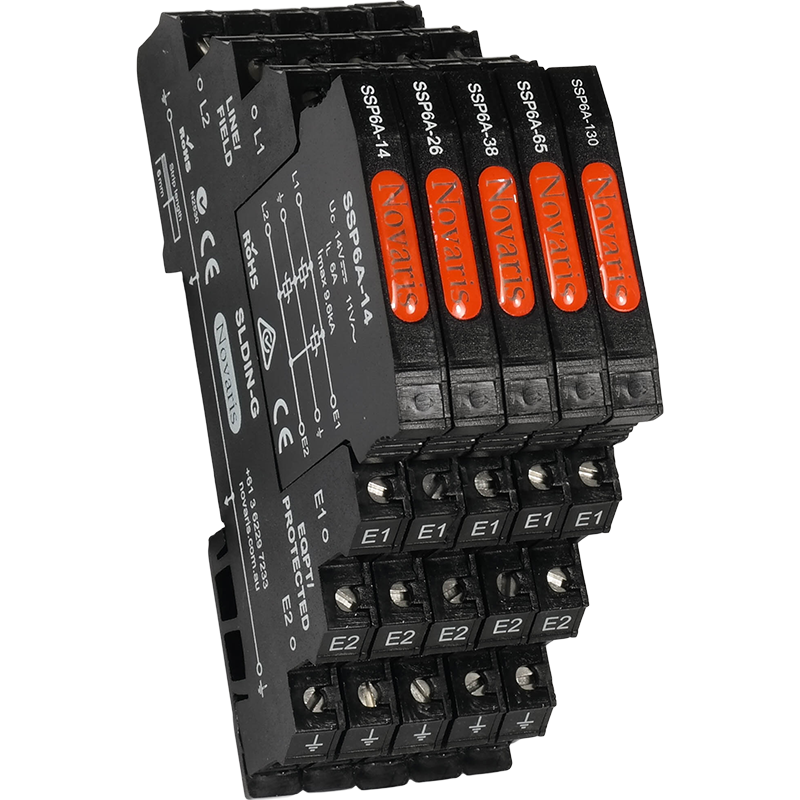

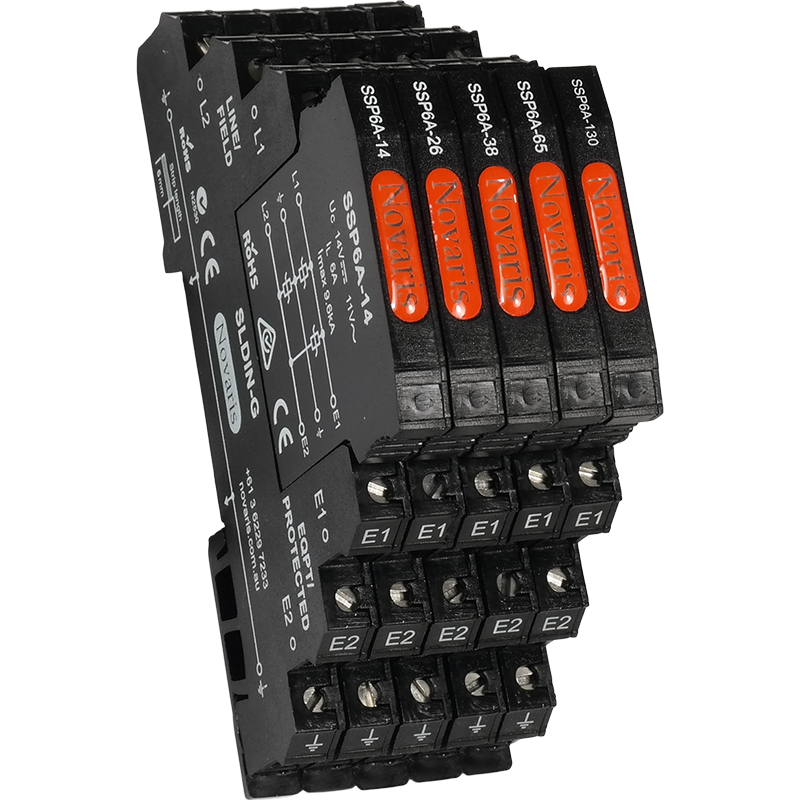

NOVARIS SERIES SURGE PROTECTOR 38V 9.6kA REPLACEMENT MODULE SSP6A-38
