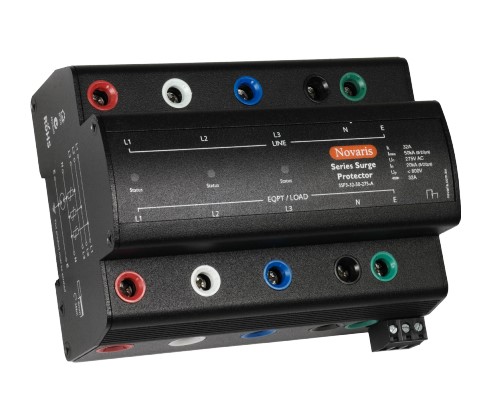

NOVARIS SSP3 COMPACT SURGE PROTECTOR, TYPE 2+3 SSP3-32-100-275-A

Product Code: SSP3-32-100-275-A

: The Novaris SSP3 Series Surge Protectors provide comprehensive protection for electrical systems by guarding against surges on all combinations of lines. Designed for indoor use, these compact devices are suitable for space-constrained applications and ensure safety with their sturdy metal enclosures. They meet various international standards including IEC and UL, making them ideal for global industrial installations.

Technical Specifications

Brand NOVARIS
Alarm Contact Yes
Maximum Load Current - I? (A) 32
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 126W x 69H x 95L
Maximum Continuous Operating Voltage MCOV AC (V) 275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA) 100 (L-N) 60 (N-PE)
Mounting Type DIN rail
No. of Phases 3
No. of Poles 3P+N+PE
Nominal Discharge Current (8/20µs) - In (kA) 40 (L-N), 50 (N-PE)
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -40 to 70
Series SSP3
Standards and Approvals IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV) <1.7 (L-N), <1.3 (N-PE)
Weight (g) 690
