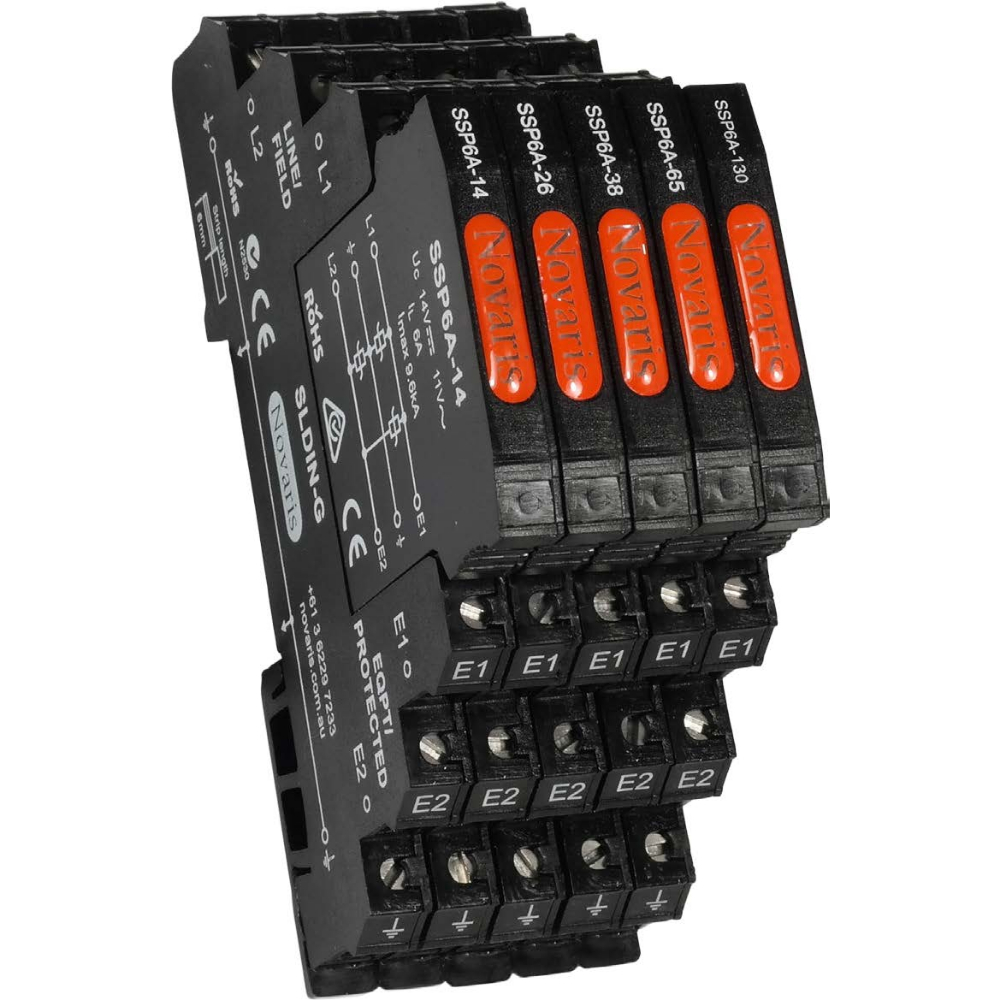

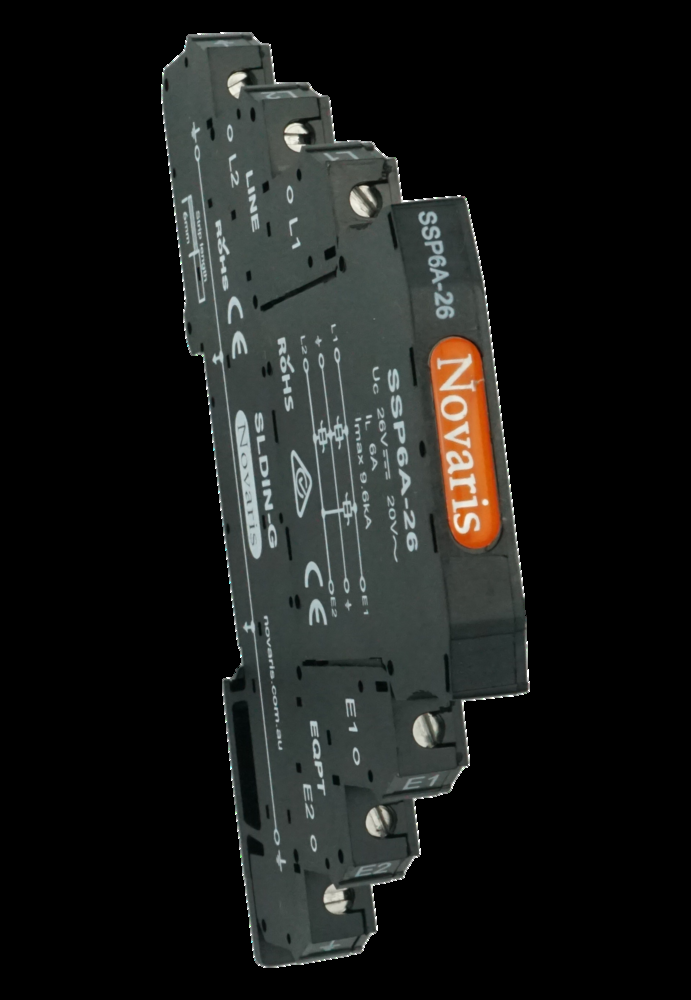

<p>When it comes to safeguarding your signal lines, this Signal Line Protector offers robust protection and reliability, making it a dependable choice for industrial and commercial applications. Designed with precision, this protector is engineered to handle a rated voltage of 26 VDC and boasts an impressive current capacity of 4.8 kA per line and 9.6 kA in common mode.</p><p>The compact design features dimensions of just 7 mm in width, 102 mm in height, and 68 mm in depth, allowing for easy installation on a TS35 DIN rail. Despite its small size, the unit is built from durable polycarbonate material and weighs only 35 grams, ensuring both sturdiness and lightweight efficiency.</p><p>Rated IP20 for protection against solid objects larger than 12mm but not water ingress, it&#39;s well-suited for controlled environments. The operational temperature range spans from -40 to 70 degrees Celsius—ideal for various climatic conditions—and supports humidity levels between 5% to 95%, making it versatile across different settings.</p><p>Compliance with several standards such as IEC 61643-21:2012, AS/NZS 1768:2007, UL1499 (3rd Edition), UL497B, ITU-T K.44:2012 ensures that you are investing in a product that meets rigorous international safety benchmarks. It also aligns with local Australian standards like AS/CA S008:2010 and AS/NZS4117:1999.</p><p>Performance-wise, this protector showcases an impressive response time of less than five nanoseconds (ns) which facilitates immediate reaction during surges or spikes. Its capacitance measures at a moderate level of 28 nF while maintaining low resistance at just 0.02 Ohms—ensuring minimal impact on signal integrity.</p><p>The device utilizes direct earthing via its G base type configuration which enhances grounding effectiveness—a critical feature when managing surge events through transverse and common modes protection across one pair of lines.</p><p>Installation is straightforward thanks to its user-friendly tightening torque specification set at precisely 0.5 N-m ensuring secure connections without over-tightening risks.</p><p>With a voltage protection level capped at approximately double the operating voltage at around55 VDC—the balance between safeguarding equipment from overvoltage conditions versus normal operation remains optimal throughout use cases demanding high reliability within communications infrastructure setups or similar environments requiring stringent protective measures against electrical disturbances often encountered today’s interconnected world!</p>
