Product Code: SSP6A-26-EC90

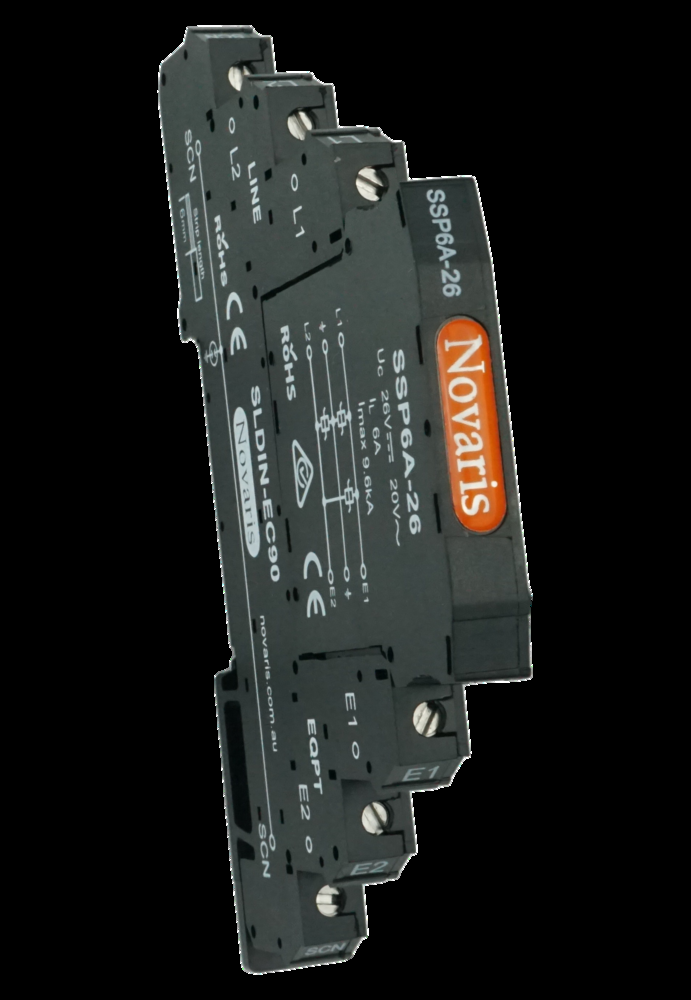

The Signal Line Surge Protector is designed to protect signal lines from surges. It comes in a pair and has a maximum continuous operating voltage of 26VDC and 20VAC. The maximum discharge current is 4.8 kA per line at 8/20ms (9.6 kA common mode). The maximum load current is 6A. It has a voltage protection level of <55V at 1kV/µs (L-L, L-PE). The surge protector is designed for series connection and has a replacement top module. It features an EC90 base with 90V isolation between the DIN rail earth and shield. It is IP20 rated for DIN rail installation. This surge protector is suitable for applications with load currents up to 6A.

Base Option	EC90
Maximum Load Current - I? (A)	6
No. of Pairs	1
Voltage Protection Level (1kV/µs) - Up (kV)	0.055 (L-L, L-PE)
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	102H x 7W x 68D
Maximum Continuous Operating Voltage MCOV AC (V)	20
Maximum Continuous Operating Voltage MCOV DC (V)	26
Maximum Discharge Current (8/20µs) - Imax (kA)	4.8 (per line), 9.6 (common mode)
Mounting Type	DIN rail
Operational Temperature Range (°C)	-40 to 70
Standards and Approvals	IEC 61643-21, AS/NZS 1768, UL 1499, UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117

Lightning & Surge Protection

NOVARIS SIGNAL LINE SURGE PROTECTOR 1 PAIR 9.6kA SSP6A-26-EC90

Product Code: SSP6A-26-EC90
