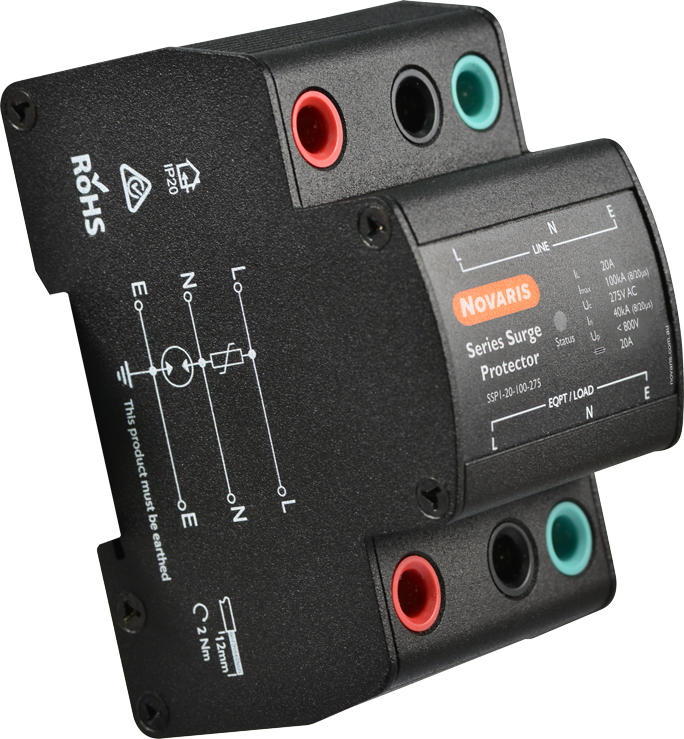

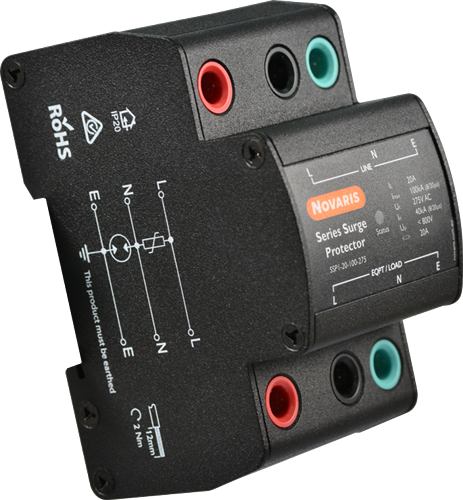

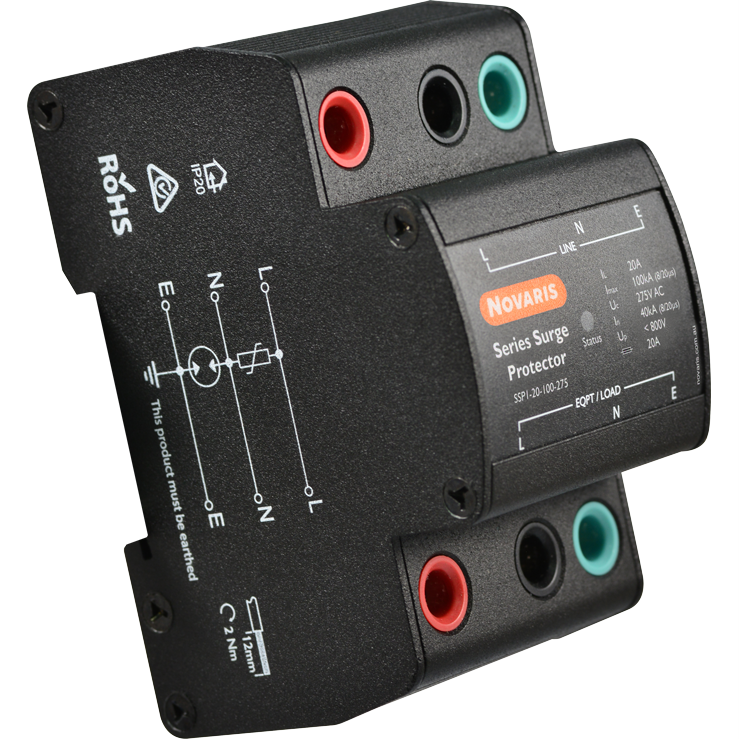

<p>When it comes to safeguarding your electrical systems, selecting the right surge protector is crucial. This particular Surge Protector offers a robust solution designed for both industrial and commercial applications, ensuring reliability and efficiency.</p><p>Operating at a rated voltage of 230 VAC with a current capacity of 20 A, this surge protector is well-suited for single-phase power systems. Its compact design measures 54 mm in width, 69 mm in height, and 95 mm in depth, making it an excellent fit for tight spaces. The device supports versatile mounting options including TS35 DIN Rail and panel mounting.</p><p>Built to withstand harsh environments, this surge protector operates efficiently across a broad temperature range from -40 to 70 degrees Celsius. It also boasts an IP20 degree of protection against solid objects larger than 12mm but should be installed in areas where exposure to moisture or liquids is not anticipated.</p><p>The LED status display provides clear visual cues on the operational status of the unit, allowing users to quickly assess its condition. With an impressive response time of less than 5 nanoseconds (L-N) and under 100 nanoseconds (N-PE), this device ensures rapid reaction to surges, protecting sensitive equipment from potential damage.</p><p>Safety and compliance are paramount; hence this product adheres to stringent standards such as IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 (3rd Edition), and IEEE 62.41.2:2002. These certifications assure that the surge protector meets high-quality benchmarks for performance and safety.</p><p>Constructed from durable metal materials weighing approximately 335 grams, it promises longevity even under demanding conditions. The unit can handle discharge currents up to a substantial level of 100 kA while offering protection modes across L-N, L-PE, N-PE pathways.</p><p>Featuring an interrupt rating of up to 100 A along with a fuse rating matching its current capacity at 20 A ensures that your system remains intact during unexpected overloads or faults. Furthermore, the voltage protection level is kept below &lt;800 V which effectively shields connected devices from over-voltage situations.</p><p>For those concerned about lightning-induced surges or transients caused by switching operations within electrical networks—this model offers lightning impulse currents measured at up to&#160;6.25 kA (L-N)&#160;and&#160;15 kA (N-PE). Additionally equipped with short circuit ratings reaching as high as&#160;25 kA—it’s engineered meticulously keeping resilience front-of-mind without compromising on operational integrity throughout its lifecycle.</p>
