Product Code: SSP1-16-15-275

The Series Surge Protector is a single-phase device with 1P+N+PE configuration. It operates at a nominal voltage of 230 VAC and can handle a maximum continuous operating voltage of 275VAC. In terms of surge protection, it has a maximum discharge current of 15kA (L-N) and 25kA (N-PE) at 8/20ms. The nominal discharge current is 5kA (L-N) and 10kA (N-PE) at the same time interval. The maximum load current that this surge protector can handle is 16A. It provides voltage protection level (Up) below 1000V (L-N) when the nominal discharge current is applied. This surge protector offers series connection and all mode protection. It also features LED status indicators per phase and can be mounted on DIN rail.

Maximum Load Current - I? (A)	16
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	18W x 69H x 115L
Maximum Continuous Operating Voltage MCOV AC (V)	275 (L-N), 255 (N-PE)
Maximum Discharge Current (8/20µs) - Imax (kA)	15 (L-N), 25 (N-PE)
Mounting Type	DIN rail
No. of Phases	1
No. of Poles	1P+N+PE
Nominal Discharge Current (8/20µs) - In (kA)	5 (L-N), 10 (N-PE)
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-40 to 70
Series	SSP1
Standards and Approvals	IEC 61643-11, AS/NZS 1768, UL 1449, IEEE 62.41.2
Voltage Protection Level - Up (kV)	<1 (L-N)
Weight (g)	150

Lightning & Surge Protection

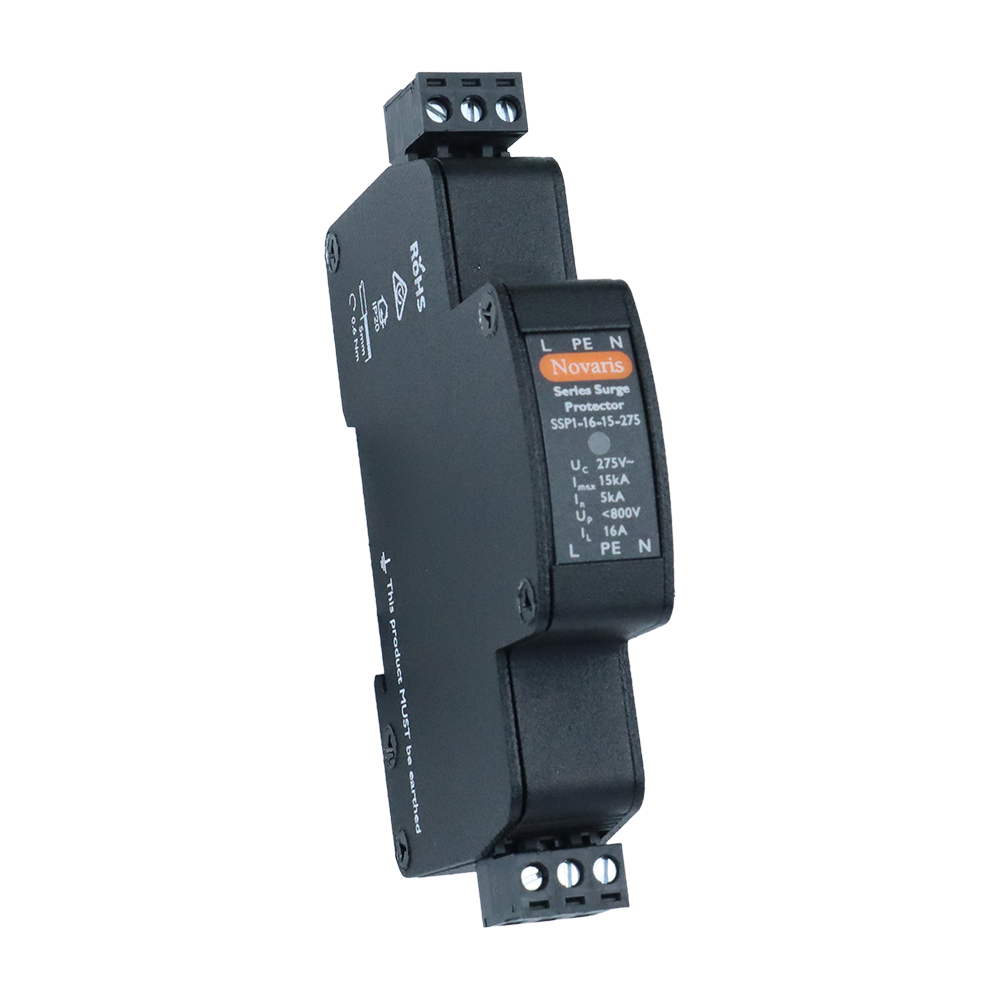

NOVARIS SSP1 SURGE PROT. 230VAC 15KA SSP1-16-15-275
