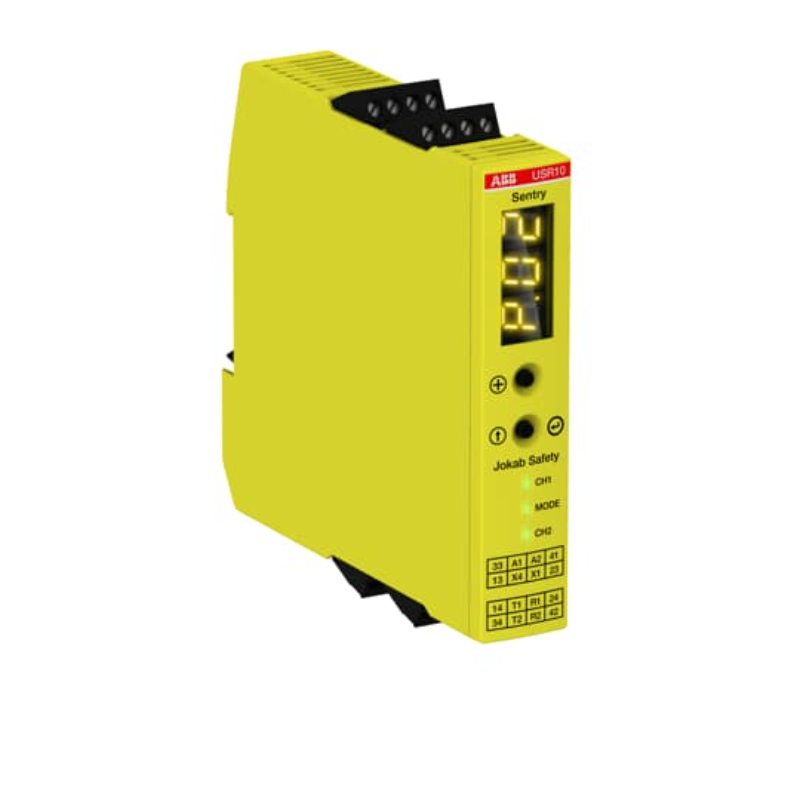

ABB USR10 UNIVERSAL SAFETY RELAY OUTPUT 3NO+1NC, +24VDC, MONITORING SAFETY DEVICES, ADVANCED TIMER

The Universal Safety Relay/Safety Timer is a versatile device designed to ensure safety in various applications. It features 3 normally open (NO) and 1 normally closed (NC) relay outputs, making it suitable for a wide range of safety devices. With a +24 VDC power supply and screw terminals, the relay can easily be integrated into existing systems. It is capable of monitoring safety devices with contacts, including 1 or 2 equivalent or antivalent channels. Additionally, it supports safety devices with OSSD outputs, two-hand devices, safety mats, and safety edges/bumpers. The timer function allows for precise timing from 0 to 999 seconds, with an accuracy better than 1%. This includes various timing modes such as OFF-delay, ON-delay, Time bypass, and Time reset. To facilitate configuration and troubleshooting, the relay/timer has a front display that shows error codes and an error log. This makes it easier to identify and resolve any issues that may arise. Furthermore, the relay/timer offers the flexibility of manual or automatic reset options. This allows users to choose the most suitable reset method for their specific application. Overall, the Universal Safety Relay/Safety Timer provides reliable safety monitoring and precise timing capabilities in a user-friendly package.
